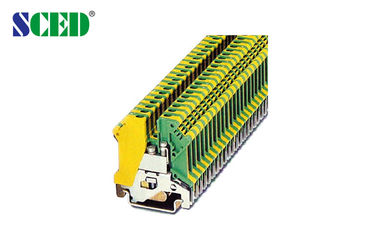

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow

المنتجات - دين السكك الحديدية كتل المحطة الطرفية
  • إبراز

    rail mounted terminal blocks,din rail terminals blocks

    ,

    din rail terminals blocks

  • عرض المحطة
    6.2 ملم
  • مجموعة الأسلاك
    26-10 أوغ
  • اللون
    أخضر وأصفر
  • طول التجريد
    8 ملم
  • برغي
    م 3
  • عزم الدوران
    0.6-0.8 نيوتن
  • ارتفاع
    47 / 54.5 / 52 ملم
  • أبعاد
    6.2 / 42.5 ملم
  • زاك سرتيب
    ZB6
  • Place of Origin
    Guangdong,China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL,CE etc.
  • Model Number
    TR-KG5N
  • Minimum Order Quantity
    500 Piece/Pieces
  • الأسعار
    USD 0.5-1.0 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow

  • Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow
  • Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow
  • Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow



Detailed product Description:

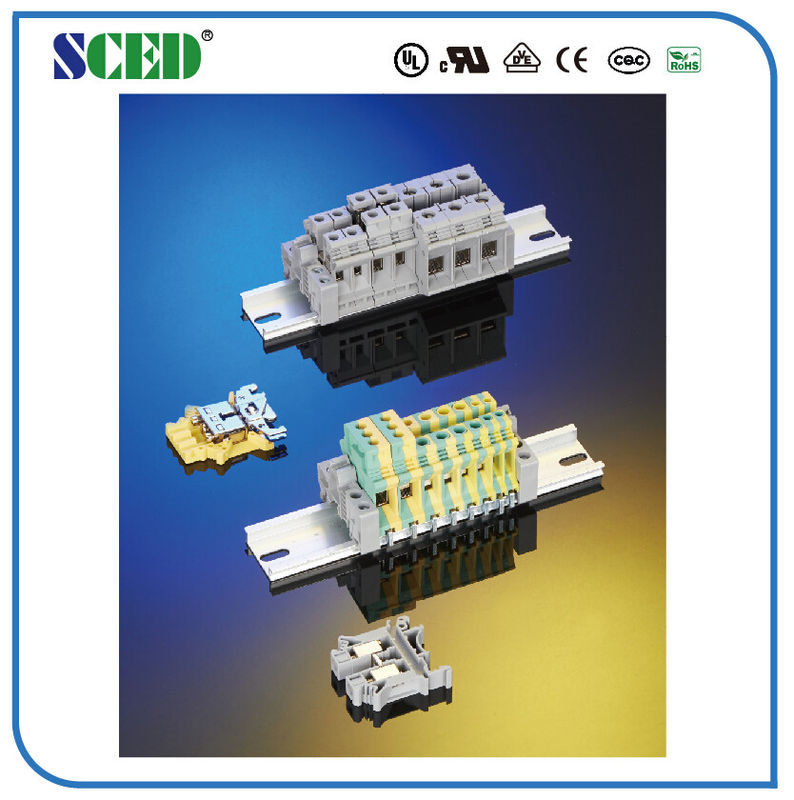

Terminal Width: 6.2mm, AWG:26-10, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



Wire Range:■Right angle wire inlet;

Decks:■Single Deck;

Standard color: Green and yellow.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow 0



Parameter and Drawing Specifications:

Description Color Type
Terminal Green & Yellow TR-KG5N
Zack Strip White ZB6 SZS0.6x3.5
Rail Material Aluminum / Steel
Dimensions 6.2/42.5
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Wire Fixing Screw / Torque Nm M3 / 0.6-0.8
Center Fixing Screw / Torque Nm M3 / 0.6-0.8
Stripping Length mm 8



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. Stable high quality and competitive price
  4. Quick response and good service

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow 1
