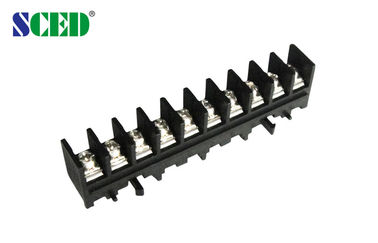

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
-
إبراز
electrical terminal block,barrier type terminal block
,barrier type terminal block
-
عدد جهات الاتصال2P-18P
-
ملعب كورة قدم7.62mm
-
تيار مصنّف15A
-
جهد فلطيّ مصنّف300V
-
مجموعة الأسلاك14-22 AWG
-
اللونأسود ، الألوان الأخرى المتاحة
-
اكتبمحطة كتلة الجدار ، كتل محطة الطاقة ، كتل محطة الكهربائية
-
تطبيقالكلور ، محولات التردد ، موقع الخادم ، التبديل ، الخ
-
Place of OriginChina
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE
-
Model NumberTB762-20V
-
Minimum Order Quantity500pcs
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 15 |
|
300 / 10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
500 / 24 |
630 / 24 |
800 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.9 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||

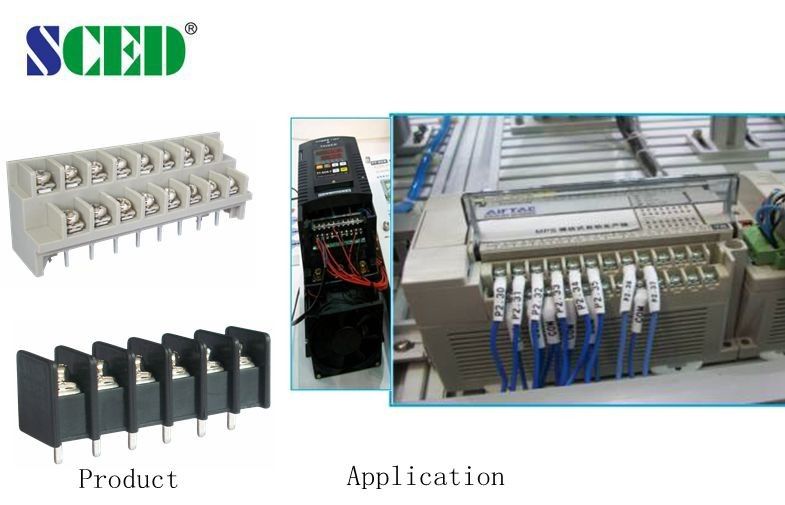

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Drawing Photo
