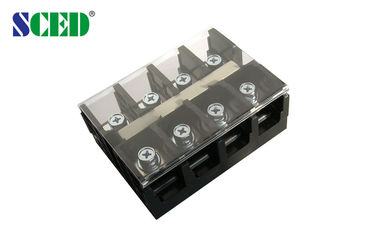

Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp

Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp

المنتجات - عالية الحالية محطة كتلة
  • إبراز

    pcb wire terminals,wiring terminal blocks

    ,

    wiring terminal blocks

  • ملعب كورة قدم
    31.00mm
  • أعمدة
    أي أعمدة المتاحة
  • جهد فلطيّ مصنّف
    600V
  • تيار مصنّف
    200A
  • المواد العازلة
      جهاز الكمبيوتر
  • فئة الالتهاب
    UL94 ، V-0
  • اللون
    أسود
  • برغي
    M8 / الصلب / الزنك مطلي
  • Place of Origin
    Shenzhen, China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL, CE, CQC
  • Model Number
    TR200-02-BCM0
  • Minimum Order Quantity
    500
  • الأسعار
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp

  • Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp
  • Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp
  • Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp
  • Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

High Current Terminal Connector Block Electrical connectors 600V 200amp connector





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 200 600 / 200
Wire Range AWG 4/0-20 4/0-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /200 1000 / 200 1000 / 200
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 80
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 14-18
Screw Torque mm M8 / 31-40





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

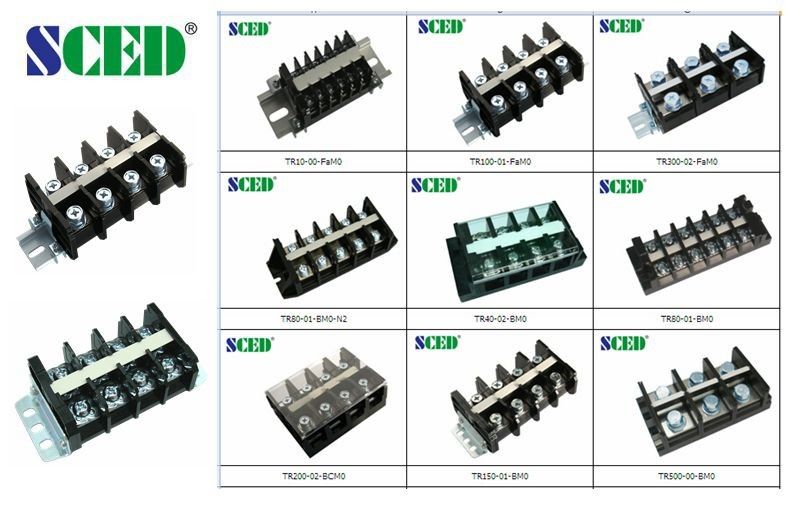

How to order:



Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp 0

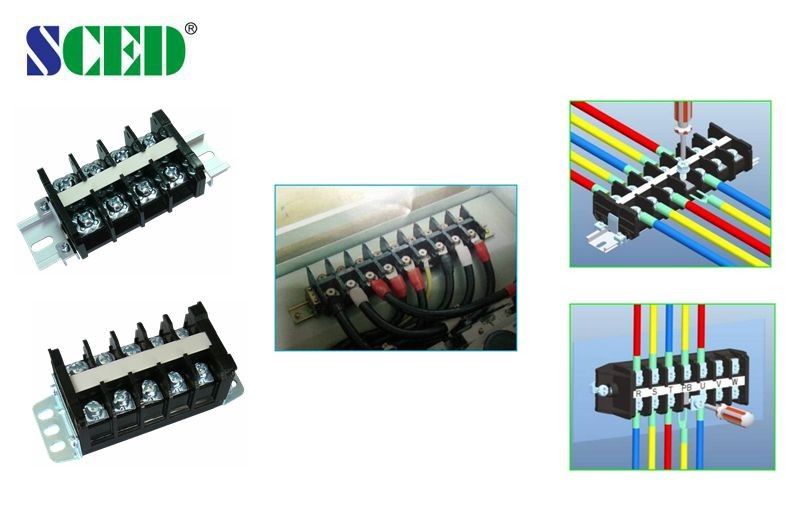

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp 1

بطاقة:

wiring terminal blocks,pcb wire terminals,power terminal block

pcb wire terminals,wiring terminal blocks

power terminal block
