Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector

Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector

المنتجات - بب محطة كتلة
  • إبراز

    pcb screw terminal blocks,pcb mount terminal block

    ,

    pcb mount terminal block

  • ملعب كورة قدم
    5.08mm
  • مواد
    PA66
  • طرفية
    فولاذ نحاسيّ
  • اللون
    أخضر
  • أعمدة
    2p 3p أي أعمدة المتاحة
  • عينات
    متاح
  • Place of Origin
    Shenzhen, China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL, CE
  • Model Number
    TJ508-22
  • Minimum Order Quantity
    500
  • الأسعار
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector

  • Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector
  • Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector
  • Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

Double Levels Spring Cage Clamp Terminal Block 300V Green PA66 Connector



Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3







Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response

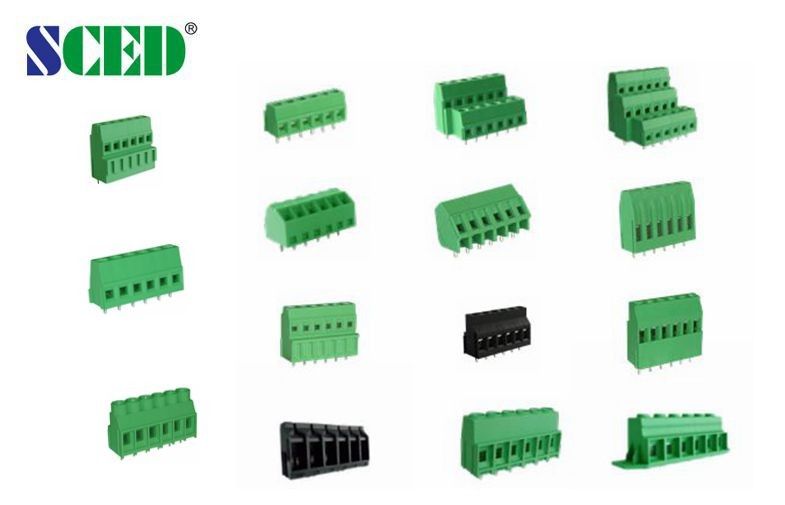

  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Photo Drawing

Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector 1



Photo Application

Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector 2
