| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE,CUL,CQC,VDE etc. |
| رقم الموديل: | TP381P-23 |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.05 -0.12 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 3.81 ملم | مجموعة الأسلاك: | 16-30 أوغ |
|---|---|---|---|
| أعمدة: | 2-22 عمود | تيار: | 8 أ |
| الجهد االكهربى: | 300 فولت | مادة العزل: | PA66 |
| فئة القابلية للاشتعال: | UL94-V0 | طول التجريد: | 9-10 ملم |
| مقاومة العزل: | فوق DC500V ، 500MΩ | مقاومة التواصل: | أقل من 8 مΩ |
| تسليط الضوء: | electrical terminal blocks,plug in terminal block,plug in terminal block |
||

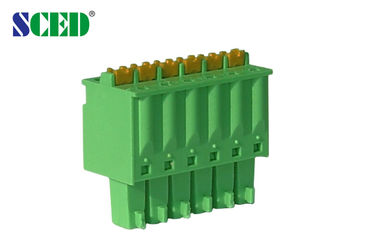

Spacing 3.5mm Pluggable Terminal Block Female Green 2-22 Positions 300V/8A UL94-V0
Detailed product Description:
Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V.
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

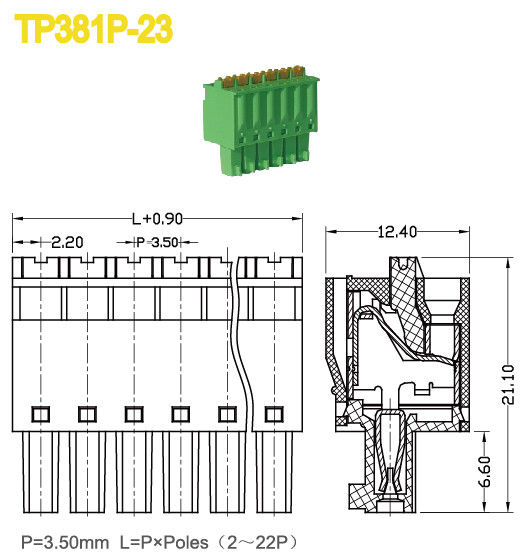

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 8 | ||
| Wire Range AWG | 16-30 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Spring Clamp | Stainless Steel | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Other Data | |||
| Stripping Length mm | 9-10 | ||
Competitive Advantage:
