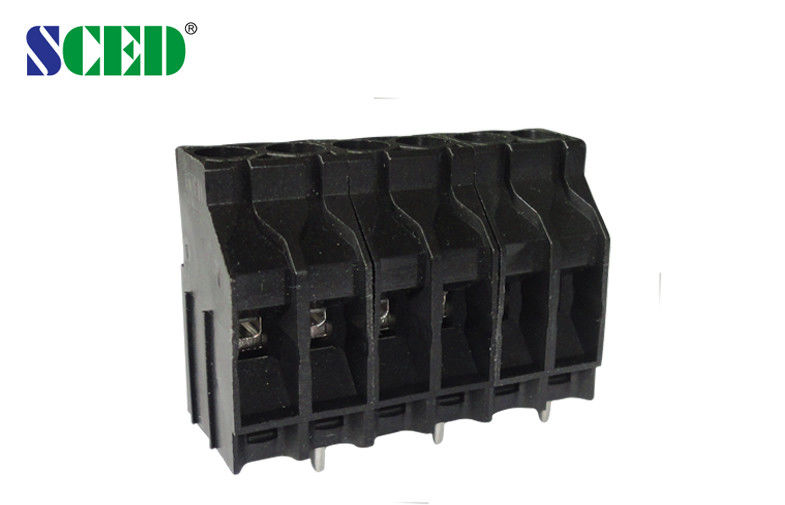

Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG

Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG

المنتجات - بب برغي محطة كتلة
  • إبراز

    screw type terminal block,screw connection terminal block

    ,

    screw connection terminal block

  • اللون
    أسود
  • ملعب كورة قدم
    6.35 ملم
  • تيار
    30 أ
  • الجهد االكهربى
    600 فولت
  • برغي
    م 3
  • طول التجريد
    7-8 ملم
  • عزم الدوران
    4.4-5.3 رطل في البوصة
  • مجموعة الأسلاك
    10-22 أوغ
  • مادة العزل
    PA66
  • فئة القابلية للاشتعال
    UL94-V0
  • Place of Origin
    China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TJ952-03-A1
  • Minimum Order Quantity
    1000 Piece/Pieces
  • الأسعار
    USD 0.139-0.275 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG

  • Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG
  • Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG
  • Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG



Detailed product Description:



Pitch 6.35mm, 600V 30A, 2P-16P, PCB Terminal blocks – Euro type Raising series



■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks



Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:



Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

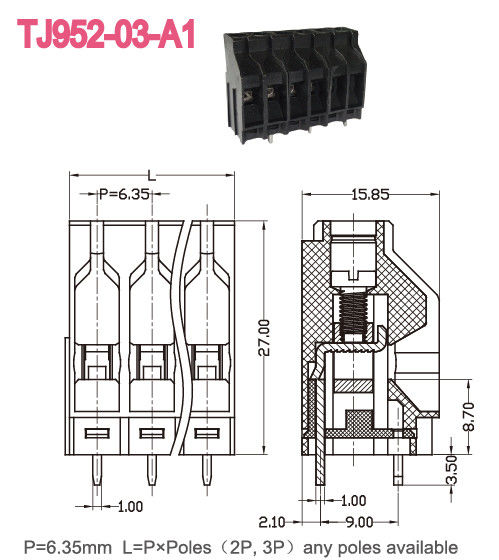

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30 600 / 30
Wire Range AWG 10-22 10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 1000 / 32 1000 / 32 1000 / 32
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 4.0
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.6
Stripping Length mm 7-8
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG 1
