مكان المنشأ: | China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL,CE,CUL,CQC and VDE etc. |
رقم الموديل: | TJ500-09 |
الحد الأدنى لكمية: | 1000 Piece/Pieces |
---|---|
الأسعار: | USD 0.05-0.15 Per Pole |
تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
وقت التسليم: | 5-20 Working Days |
شروط الدفع: | T/T, L/C |
القدرة على العرض: | 1000000 Pole/Poles per Month |
تيار: | 10 أ | الجهد االكهربى: | 300 فولت |
---|---|---|---|
ملعب كورة قدم: | 5.0 مم | مجموعة الأسلاك: | 14-20 أوغ |
مادة العزل: | PA66 | فئة القابلية للاشتعال: | UL94-V0 |
صالة: | نحاس | تصفيح: | مطلي بالقصدير |
طول التجريد: | 9-10 ملم | قدرة التوصيل: | 1.5 مم 2 |
تسليط الضوء: | spring clamp terminal block,wiring terminal blocks,wiring terminal blocks |
Pitch 5.0mm Spring Terminal Block 2-24 Poles Brass 300V/10A Screwless PA66
Detailed product Description:
Pitch 5.00mm, 300V 10A, 2P-24P, Spring Terminal blocks, Screwless terminals
□ Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■ Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

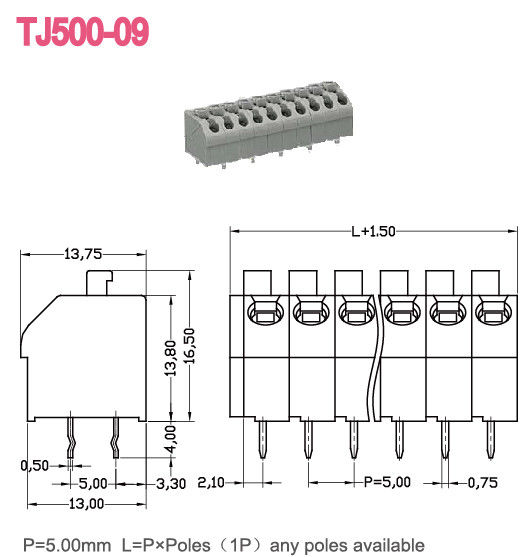

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 | ||
Wire Range AWG | 14-20 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 320 / 10 | 320 / 10 | 630 / 10 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Spring / Plating | Stainless Steel / - | ||
Terminal / Plating | Brass / Tin Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.3 | ||
Stripping Length mm | 9-10 |
Competitive Advantage:
