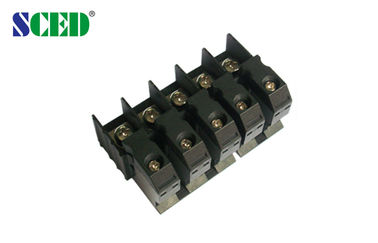

Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5

Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5

المنتجات - تغذية من خلال محطة كتلة
  • إبراز

    pcb screw terminal blocks,pcb mount terminal block

    ,

    pcb mount terminal block

  • ملعب كورة قدم
    15 ملم
  • تيار
    90 أ
  • الجهد االكهربى
    600 فولت
  • مجموعة الأسلاك
    4-20 أوغ
  • قدرة التوصيل المقدرة
    16 ملم 2
  • مادة العزل
    PA66
  • فئة القابلية للاشتعال
    UL94-V0
  • مجلس التوصيل
    نحاس
  • تصفيح
    النيكل مطلي
  • طول التجريد
    10-12 ملم
  • برغي
    م 5
  • عزم الدوران
    14-16 رطل في البوصة
  • اللون
    أسود
  • Place of Origin
    China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TD90-00
  • Minimum Order Quantity
    500 Piece/Pieces
  • الأسعار
    USD 0.952-0.195 Per Pole
  • Packaging Details
    Standard export packing carton, or according to customers demand.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5

  • Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5
  • Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5
  • Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

Electrical Feed Through Terminal Block Connectors 85A Brass Perforation Panel Mount



Detailed product Description:



Pitch 15.0mm, 600V 90A, 2P-12P, Perforation Terminal block, Feed Through Terminal Block connector



Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5 0



Applications:



Our products can be used in Power Supply, Industrial Control, Servo Drive, PCB, Automation, Communication, Rail Transportation, Electric Lighting, Medeical Equipment, Security and so on.



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 90 600 / 90
Wire Range AWG 4-20 4-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 90 1000 / 90 1000 / 90
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 16
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Conduction Board / Plating Brass / Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 10-12
Screw / Torque / lbf.in M5 / 14-16



Competitive Advantage:



  1. Strong R&D abilities
  2. OEM and ODM service
  3. 10 main series and more than 1000 models for selection
  4. High stable quality
  5. Competitive price
  6. Good service

Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5 1
