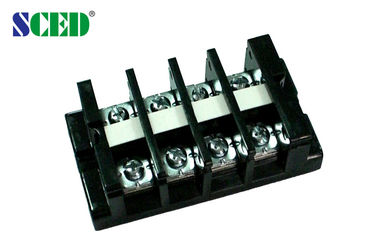

High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector

High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector

المنتجات - عالية الحالية محطة كتلة
  • إبراز

    pcb wire terminals,wiring terminal blocks

    ,

    wiring terminal blocks

  • اكتب
    screw type
  • ملعب كورة قدم
    18.00mm
  • أعمدة
    أي أعمدة المتاحة
  • مواد
      جهاز الكمبيوتر
  • اللون
    الأسود ، وغيرها المتاحة
  • كلمات الأساسية
    المسمار جبل المحطة
  • Place of Origin
    Shenzhen, China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL, CE, CQC
  • Model Number
    TR60-03-BM0
  • Minimum Order Quantity
    500
  • الأسعار
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    5-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector

  • High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector
  • High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector
  • High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector
  • High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 60 600 / 60
Wire Range AWG 4-20 4-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /60 1000 / 60 1000 / 60
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 14
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 12-15
Screw Torque mm M5 / 14-18







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector 0

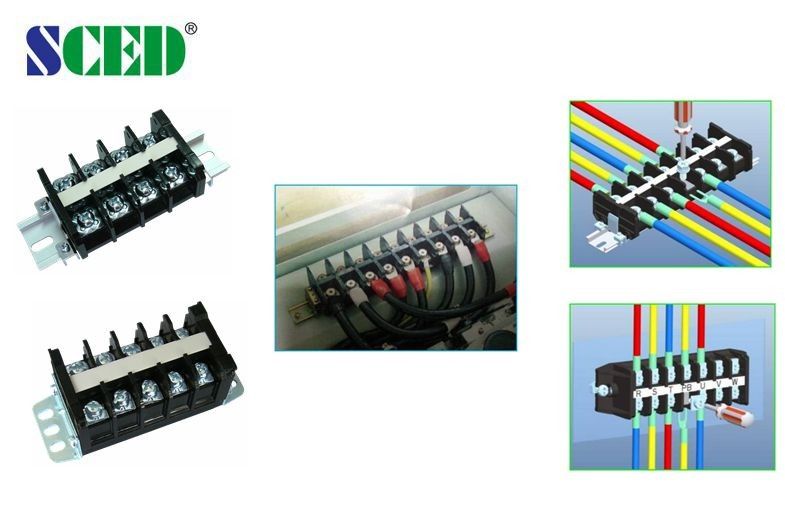

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response

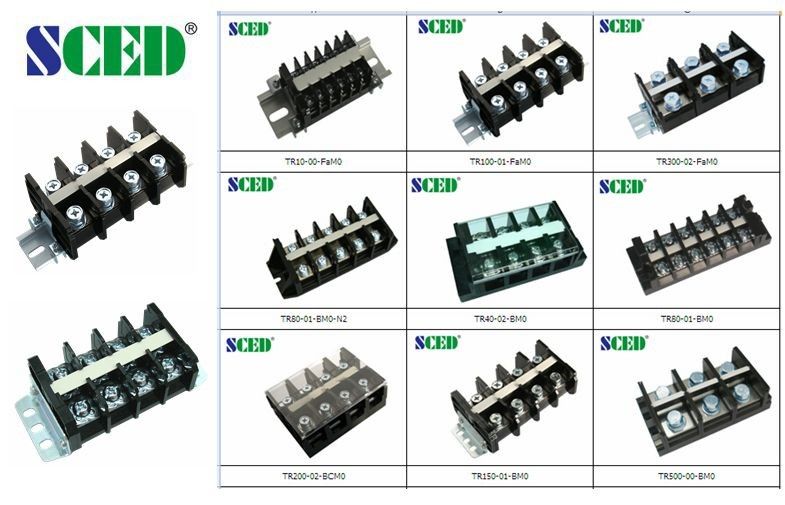

  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

High Current Terminal Connector Block 18.0mm 600V Black PC Screw Mount Connector 1
