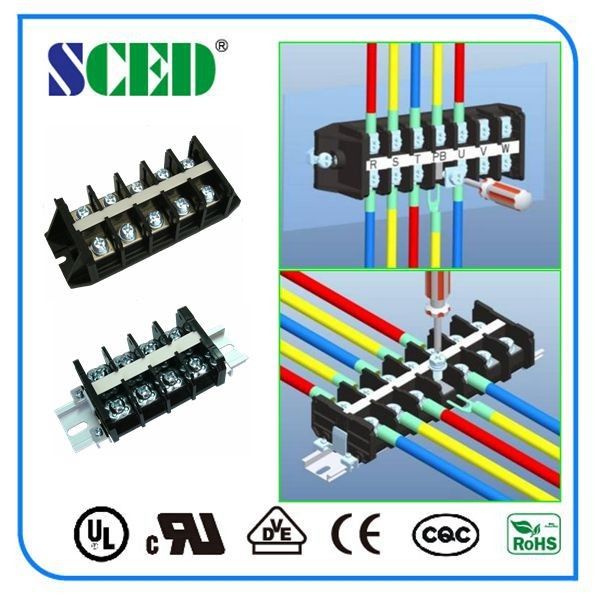

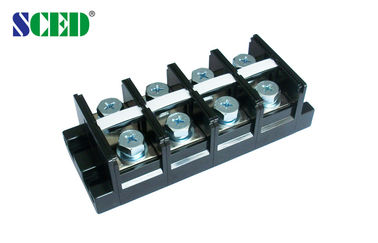

600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
-
إبراز
pcb wire terminals,wiring terminal blocks
,wiring terminal blocks
-
TypePanle mount type
-
Pitch24.00mm
-
PolesAny poles
-
MaterailPC
-
ColorBlack
-
ScrewM10
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE, CQC
-
Model NumberTR240-00-BM0
-
Minimum Order Quantity100
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 240 | 600 / 240 | |
| Wire Range AWG | 4-250kcmil | 4-250kcmil | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 1000 /240 | 1000 / 240 | 1000 / 240 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 125 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 18-20 | ||
| Screw Torque mm | M10 / 50-60 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
