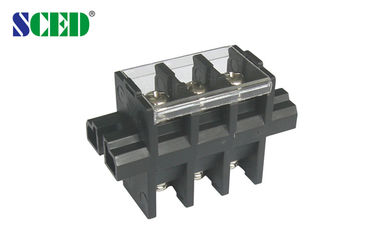

40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT

40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT

المنتجات - لوحة جبل كتلة المحطة
  • إبراز

    panel mount terminal block connector,pcb mount terminal blocks

    ,

    pcb mount terminal blocks

  • تيار
    40 أ
  • الجهد االكهربى
    600 فولت
  • ملعب كورة قدم
    13 ملم
  • برغي
    م 5
  • عزم الدوران
    16-18 رطل في البوصة
  • طول التجريد
    8-10 ملم
  • بلاستيك
    PBT
  • فئة القابلية للاشتعال
    UL94-V0
  • مجلس التوصيل
    نحاس
  • مجموعة الأسلاك
    8-22 أوغ
  • Place of Origin
    China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    CE,CUL, UL, CQC, VDE etc.
  • Model Number
    TD40-01-C
  • Minimum Order Quantity
    500 Piece/Pieces
  • الأسعار
    USD 0.233-0.466 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT

  • 40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT
  • 40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT
  • 40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ



40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT



Detailed product Description:



Pitch 13.0mm, 600V 40A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors



Decks: ■Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:



40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT 0

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

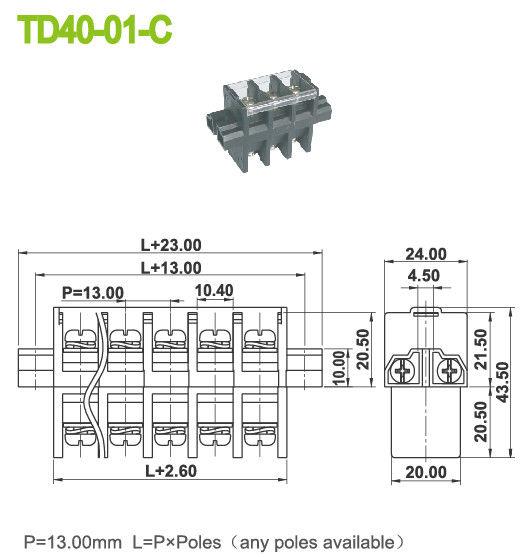

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 8-22 8-22 8-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 8
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Conduction Board / Plating Brass / Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 8-10
Screw / Torque / lbf.in M5 / 16-18



Competitive Advantage:



  1. Quickly response
  2. Full range products for selection
  3. Flexible to design the exact part per customers’ demand
  4. Stable quality and competitive price

40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT 1
