7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw
Detailed product Description:
Pitch 7.40mm, 300V 20A, 7P, Feed-Through Terminal Blocks
Wire Range: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: ■Single Level; □Double levels; □Triple levels
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Our products will be used on Communication, Automation, Rail Transportation, Power Supply, PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Security, Medical Equipment and so on.

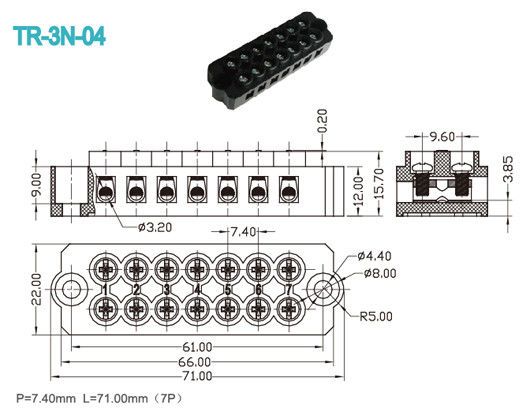

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 20 | 300 / 20 | |
| Wire Range AWG | 12-16 | 12-16 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 20 | 320 / 20 | 400 / 20 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board / Plating | |||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 5-6 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
