2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

المنتجات - التوصيل في المحطة الطرفية
  • إبراز

    power terminal block connector,electric terminal block

    ,

    electric terminal block

  • Wire Inlet
    Vertical wire inlet
  • Applications
    PCB, Frequency Converter,etc.
  • Color
    Green
  • Number of Contacts
    2-24 pins
  • Pitch
    3.81mm
  • Rated Current
    8A
  • Rated Voltage
    300V
  • Type
    Male Pluggable Terminal Blocks
  • Place of Origin
    Shenzhen, China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL, CE
  • Model Number
    TP381H-01
  • Minimum Order Quantity
    500
  • الأسعار
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

  • 2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
  • 2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
  • 2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
  • 2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ



2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

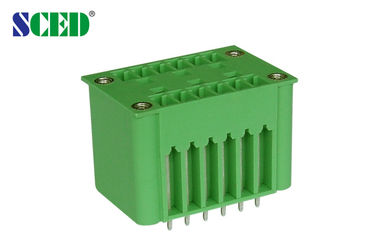

□Single Level;  ■Double Levels;  □Triple Levels

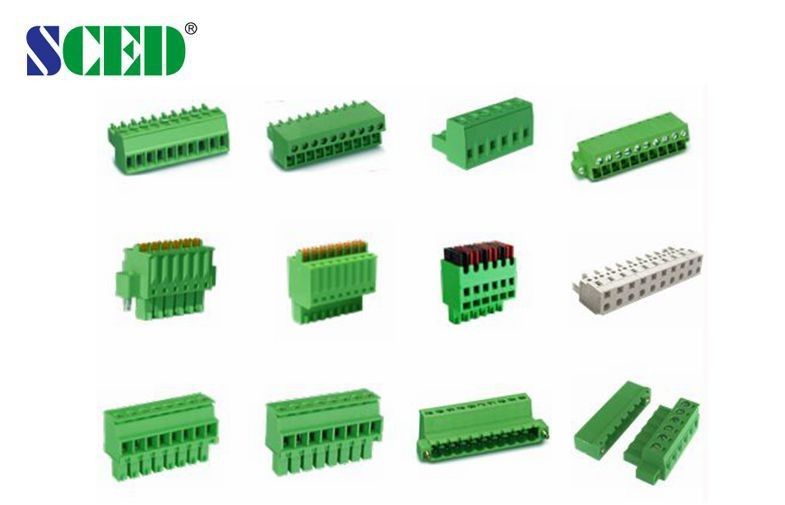

This male socket match with female plug series: TP381P-00F, TP381P-01F, TP381P-02F, TP381P-03F,   please see the photos show before


Standard color: Green. Other colors also available,



please refer to below How to Order and select the color you want.

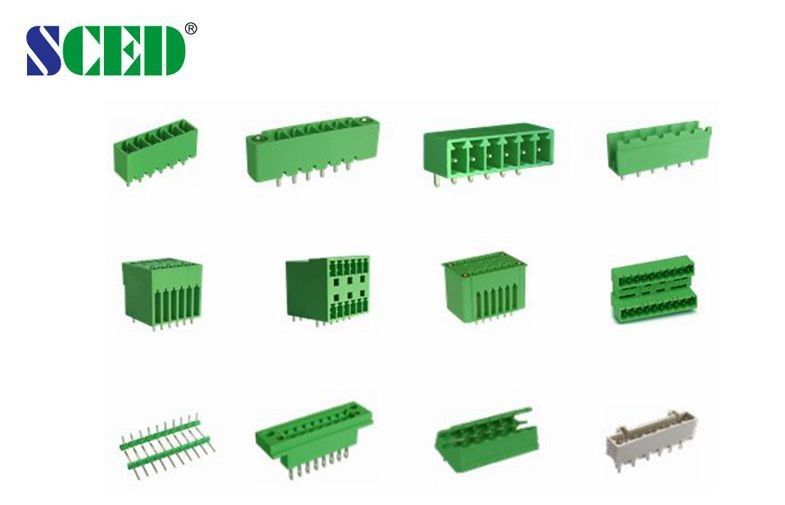

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:
2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

Military,
Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                                AWG







IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                   KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                       mm

φ1.2

PinDimension                                mm

0.8 x 0.8




Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand​​



Drawing Photo



2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm 1
