مكان المنشأ: | Guangdong,China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | CE,UL,CUL,VDE,CQC etc. |
رقم الموديل: | TB1100-02 |
الحد الأدنى لكمية: | 500 Piece/Pieces |
---|---|
الأسعار: | USD 0.153-0.203 |
تفاصيل التغليف: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198 |
وقت التسليم: | 5-20 days |
شروط الدفع: | T/T, L/C |
القدرة على العرض: | 1000000 Pole/Poles per Month |
مواد: | النحاس PBT | تيار: | 30A |
---|---|---|---|
الجهد االكهربى: | 300V | نوع: | حاجز ثنائي الفينيل متعدد الكلور |
البولنديين المتاحة: | 2-22 القطبين | فئة الالتهاب: | UL94 ، V-0 |
الاتصال بالمقاومة: | أقل من 8mΩ | تصاعد الجهد الجهد: | لا غير طبيعي في 1 دقيقة |
ملعب كورة قدم: | 11.00 مم | عزل مقاومة: | فوق DC500V ، 500MΩ |
تسليط الضوء: | electrical terminal block,barrier type terminal block,barrier type terminal block |

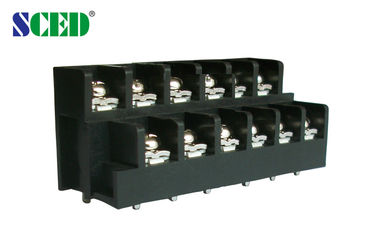

4-16 Poles PCB Dual Row terminal block barrier Pitch 11mm Screw Terminal Connector
Detailed product Description:
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 30 |
|
300 / 10 |
Wire Range AWG |
12-24 |
|
12-24 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
630 / 32 |
800 / 32 |
1000 / 32 |
Rated Surge Voltage KV |
6 |
6 |
6 |
Rated Connecting Capacity mm2 |
4 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
Terminal / Plating |
Brass /Tin Plated |
||
Screw / Plating |
Steel / Nickel Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ2.3 |
||
Stripping Length mm |
9-10 |
||
Screw / Torque / lbf.in |
M 4 / 10-13 |
Competitive Advantage:
