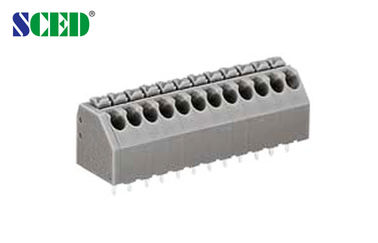

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
-
إبراز
spring clamp terminal block,wiring terminal blocks
,wiring terminal blocks
-
العنصرربيع
-
تيار5A
-
الجهد االكهربى300V
-
موادPA66
-
أعمدة1P أي أعمدة
-
مجموعة الأسلاك16-22 AWG
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE
-
Model NumberTJ381-03-D6
-
Minimum Order Quantity500
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
PCB Spring Terminal Block 5AMP 16-22 AWG PCB Screwless Terminal Connector
Quick Details:
For the pcb spring terminal blocks,
1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm,5.08mm,7.62mm
2. Diverse wire inlet direction
3. Compact structure
4. Simple operating
5. Strong vibration resistance
Spec.:
300V/5A
16-22 AWG
PA66 Material
Phosphor Bronze Terminal
PCB Hole Diameter: φ1.2
Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/5 |
|
|
|
Wire Range AWG |
16-22 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
320 / 5 |
400 / 5 |
630 / 5 |
|
Rated Surge Voltage KV |
4 |
4 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring / Plating |
|
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2 |
||
|
Stripping Length mm |
8-9 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Application:
1. Lighting
2. Instrument
3. Power supply
4. Lift, etc.
Photo of Drawing

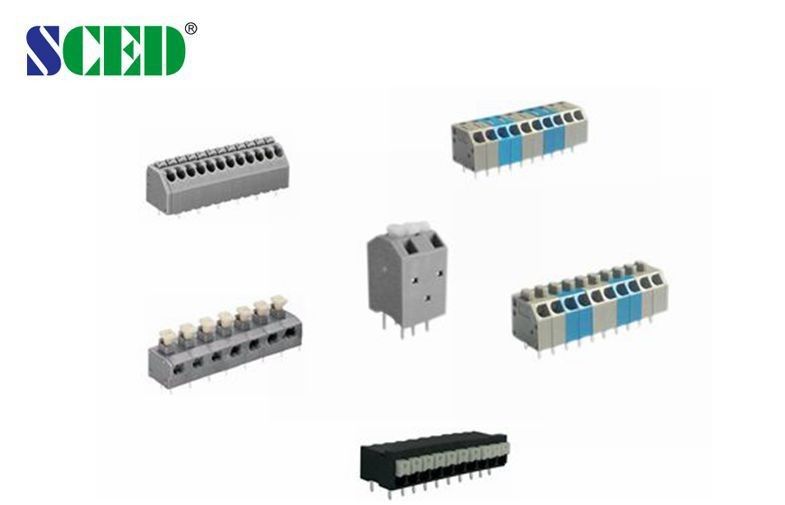

More Products:
Packing Photo:
تُباع منتجاتنا في جميع أنحاء العالم ، ويمكنك أن تطمئن إلى العملية الكاملة لمنتجاتنا.
