| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE,CUL,CQC and VDE etc. |
| رقم الموديل: | TB1450a-07 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.19-0.38 PER POLE |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 14.5 ملم | أعمدة: | 10 أقطاب |
|---|---|---|---|
| الجهد االكهربى: | 600 فولت | تيار: | 57 أ |
| مجموعة الأسلاك: | 22-6 أوغ | برغي: | م 5 |
| عزم الدوران: | 18-20 رطل في البوصة | طول التجريد: | 12-14 ملم |
| مادة العزل: | PBT | صالة: | نحاس |
| تسليط الضوء: | electrical terminal block,barrier type terminal block,barrier type terminal block |
||

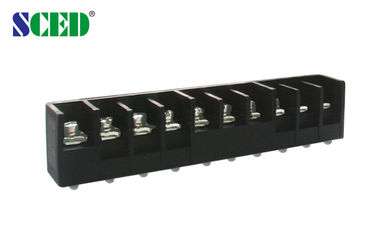

Pitch 14.50mm Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black
Detailed product Description:
Pitch 14.50mm, 600V 57A, 10P, Barrier Terminal Blocks, Power Terminal Blocks
Wire Inlet:■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels:■Single Level; □Double levels; □Triple levels
Standard color: Black.
Other colors are also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Barrier terminal blocks are widely used in automation, frequency conversion, communication, power supply, PCB, Security etc.
Competitive Advantage:

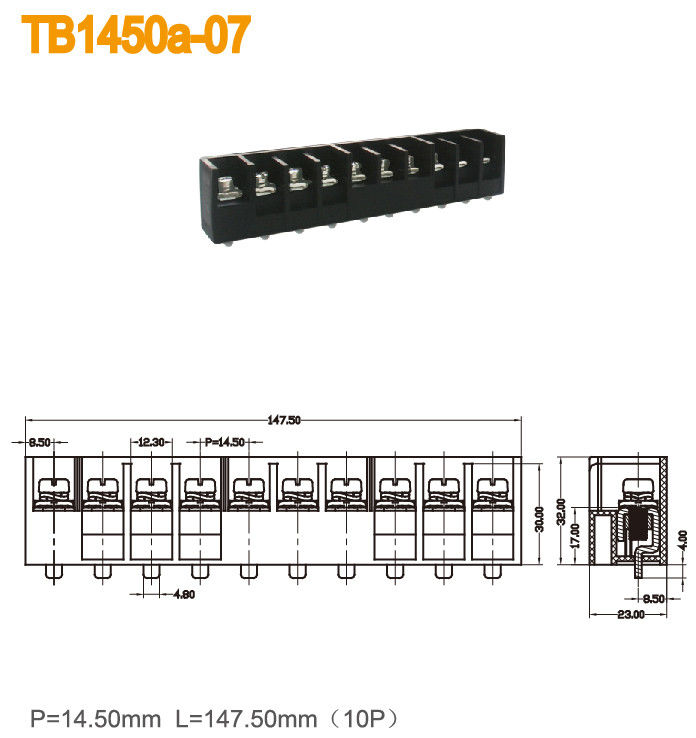

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 57 | 600 / 57 | 600 / 5 |
| Wire Range AWG | 22-6 | 22-6 | 22-6 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 57 | 1000 / 57 | 1000 / 57 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 6 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 2.4x5.2 | ||
| Stripping Length mm | 12-14 | ||
| Screw / Torque / lbf.in | M 5 / 18-20 | ||
