Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles
-
إبراز
power terminal block connector,electric terminal block
,electric terminal block
-
نوعجزء الذكور
-
ملعب كورة قدم5.08 ملم
-
أعمدة2-22 عمود متاح
-
تيار18 أ
-
الجهد االكهربى300 فولت
-
بلاستيكPA66
-
صالةنحاس
-
تصنيف الجهد الكهربائيلا يوجد شذوذ خلال 1 دقيقة
-
فئة القابلية للاشتعالUL94 ، V-0
-
مقاومة العزلفوق DC500V ، 500MΩ
-
Place of OriginGuangdong,China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL,CE,CUL,CQC and VDE etc.
-
Model NumberTP508H-00VF
-
Minimum Order Quantity500 Piece/Pieces
-
الأسعارUSD 0.015-0.032 Per Pole
-
Packaging DetailsStandard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
-
Delivery Time5-20 Working Days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles
Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles
Detailed product Description:
Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: ■Single Level; □Double Levels; □Triple Levels
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:

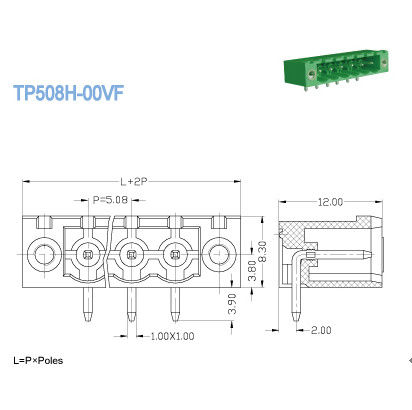

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
Applications:
Frequency Converters, Server Site, PCB, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medical Equipment and Military and so on.
Competitive Advantage:
- Competitive price
- Full range products for selection
- OEM and ODM service
- Stable high quality
تُباع منتجاتنا في جميع أنحاء العالم ، ويمكنك أن تطمئن إلى العملية الكاملة لمنتجاتنا.
