7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
-
إبراز
electrical terminal block,pcb terminal blocks
,pcb terminal blocks
-
ملعب كورة قدم7.62mm
-
اللونأسود
-
عدد جهات الاتصال2P-24P
-
مجموعة الأسلاك14-22AWG
-
جهد فلطيّ مصنّف300V
-
تيار مصنّف15A
-
كلمات الأساسيةكتلة محطة حاجز ، كتلة محطة الطاقة
-
تطبيقاتثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE
-
Model NumberTB762-01V
-
Minimum Order Quantity500
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

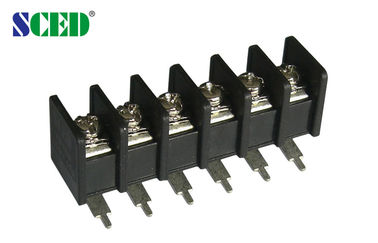

7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
7.62mm Electrical Barrier Terminal Block for Server Site 300V 15A Screw Fence Connector

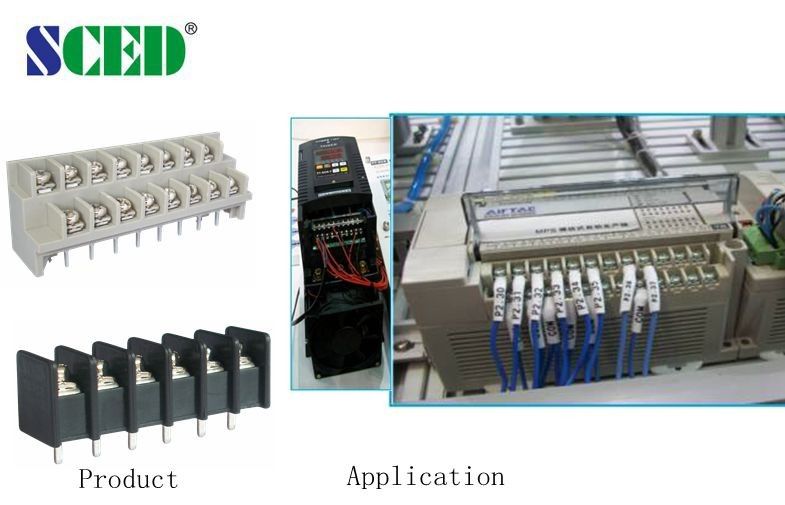

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
2-24Poles
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you
want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
How to order:
Parameter:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/15 |
|
300/10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing Photo
