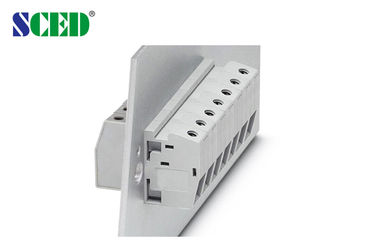

10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V

10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V

المنتجات - من خلال لوحة الطرفية كتل
  • إبراز

    wiring terminal block,feed through terminal blocks

    ,

    feed through terminal blocks

  • Color
    Grey
  • Insulation Material
    PA66
  • Voltage
    300V
  • Current
    65A
  • Terminal Width
    10.1mm
  • Material
    Brass
  • Plating
    Nickel Plating
  • Inflammability Class
    UL94, V-0
  • Place of Origin
    Guangdong China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    CE,UL,CUL,CQC,VDE
  • Model Number
    TR-10N-04
  • Minimum Order Quantity
    1000 Piece/Pieces
  • الأسعار
    USD 0.1-0.25
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 Work Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V

  • 10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V
  • 10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V
  • 10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V
  • 10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V



Detailed product Description:

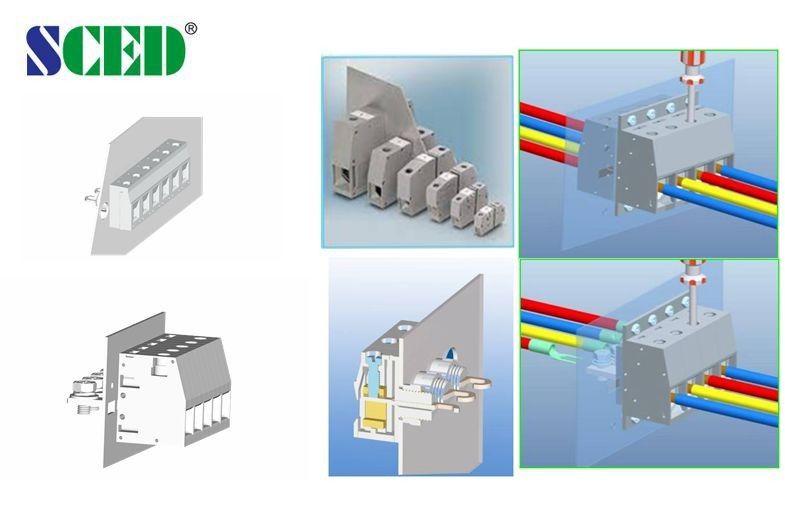

Pitch 10.1mm, 300V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2. Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 65



300 / 10

Wire Range                               AWG

6-24



6-24

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current               V/A

630 / 76

800 / 76

1000 / 76

Rated Surge Voltage                     KV

6

6

6

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11

Screw / Torque                    / lbf.in

M4 / 10.6-13



Competitive Advantage:



Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand

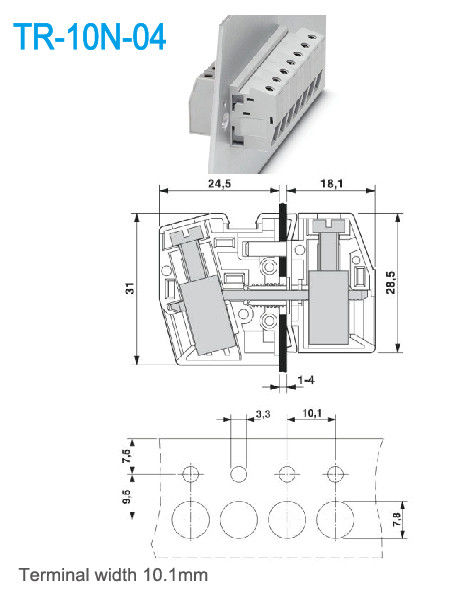

Drawing Photo:



10.1mm Bulkhead Screw Connectors Through Panel Terminal Blocks UL94 V0 65A 300V 0
