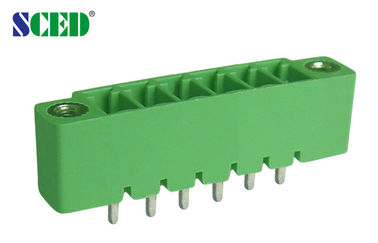

Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors
-
إبراز
pluggable terminal block connector,plug in terminal block
,plug in terminal block
-
ملعب كورة قدم3.81mm
-
أعمدة2-20 أعمدة
-
موادPA66
-
طرفيةمادة النحاس
-
الجهد االكهربى300V
-
تيار8A
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE
-
Model NumberTP381H-00F
-
Minimum Order Quantity500
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors
Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connector
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/8 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.2 | ||
| Pin Dimension mm | 0.8 x 0.8 | ||
How to order:
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
