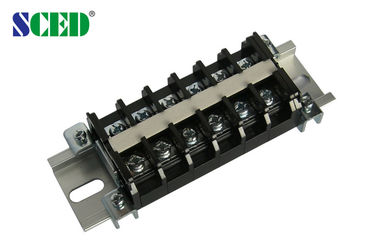

PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector
-
إبراز
pcb wire terminals,wiring terminal blocks
,wiring terminal blocks
-
ملعب كورة قدم11.50 مم
-
جهد فلطيّ مصنّف600V
-
تصنيف currennt30A
-
المواد العازلةجهاز الكمبيوتر
-
اللونأسود
-
مجموعة الأسلاك12-24 AWG
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE, CQC
-
Model NumberTR30-01-FaM0
-
Minimum Order Quantity500
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

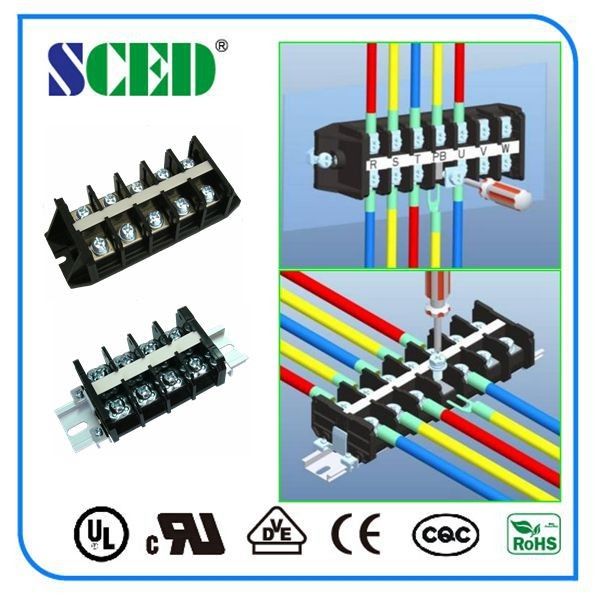

PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector
PCB Panel Mount Terminal Block 11.50mm 600V 30A PC Black Screw Terminal Connector
Parameter
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 30 | 600 / 30 | 600 / 5 |
| Wire Range AWG | 10-20 | 10-20 | 10-20 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /30 | 1000 / 30 | 1000 / 30 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 3.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 10-12 | ||
| Screw Torque mm | M4 / 10.6-13 | ||
Good service:
1. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;
3. Discount offered is based on qty.
Drawing photo
