5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
-
إبراز
power terminal block connector,electric terminal block
,electric terminal block
-
Pitch5.08mm
-
MaterialPA66
-
ColorBlack
-
Poles2-24 poles
-
Rated Voltage300V
-
Rated Current18A
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE
-
Model NumberTP508P-08
-
Minimum Order Quantity500
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

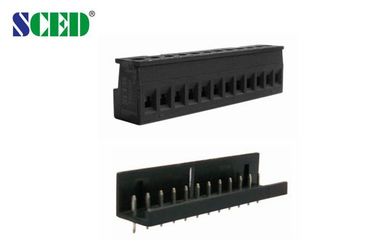

5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
5.08mm Male Female Plug In Terminal Block 300V 18A 2P - 24P For Servo Drive
Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-08
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| Wire Range AWG | 12-30 | 12-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 320 / 18 | 630 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Contactor / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
Applications:
servo drive, security communication, energy conservation, etc.
Tag:
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Drawing Photo:
