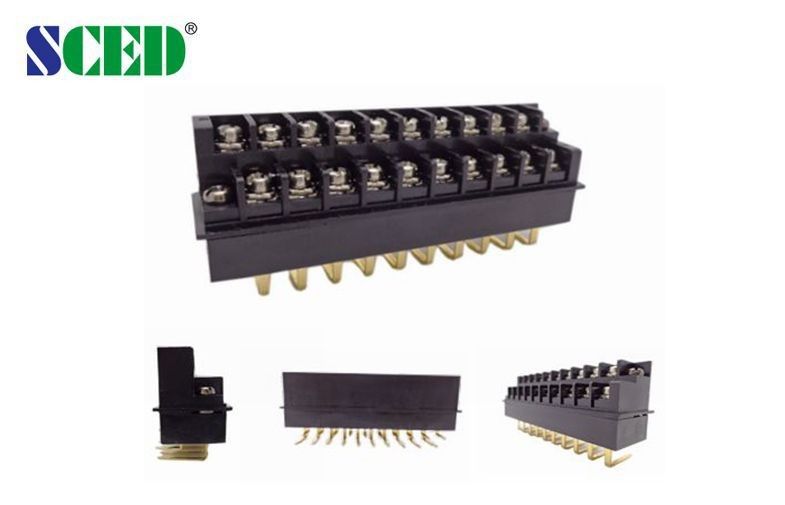

7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power

7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power

المنتجات - الحاجز الطرفية كتلة
  • إبراز

    electrical terminal block,pcb terminal blocks

    ,

    pcb terminal blocks

  • العنصر
    حاجز كتلة نوع المحطة
  • اللون
    أسود
  • عدد جهات الاتصال
    2P-22P
  • ملعب كورة قدم
    7.62mm
  • تيار مصنّف
    15A
  • جهد فلطيّ مصنّف
    300V
  • تطبيقات
    التحكم الآلي ، تحويل التردد ، مزود الطاقة ، إلخ.
  • Place of Origin
    China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL, CE
  • Model Number
    TB762-10V
  • Minimum Order Quantity
    500
  • الأسعار
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power

  • 7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power
  • 7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power
  • 7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power
  • 7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                               AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                     KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Phosphor Bronze/ Gold Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                    mm

φ1.5

Stripping Length                        mm

7-8

Screw / Torque                       / lbf.in

M 3 / 5-7

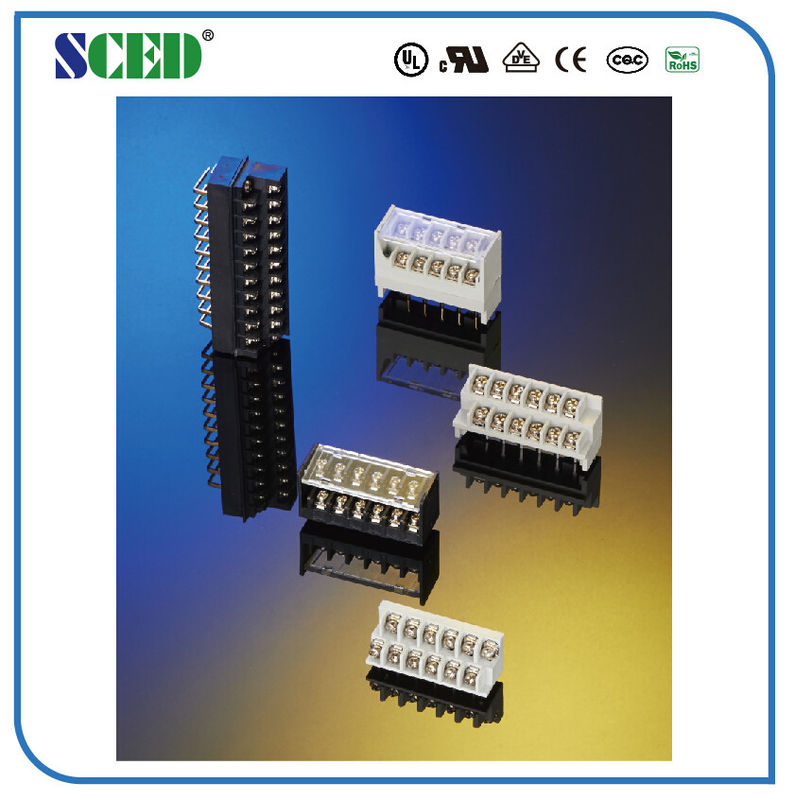

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

 7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power 0

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand



Drawing Photo



7.62mm UL CE Barrier Strip Terminal Block 300V 15A Black M3 Screw Connector For Power 1
