pluggable terminal block connector,electrical terminal blocks
,electrical terminal blocks
-
ملعب كورة قدم7.62 ملم
-
نوعأجزاء من الذكور
-
تيار18 أ
-
الجهد االكهربى300 فولت
-
قطر ثقب ثنائي الفينيل متعدد الكلور1.4 ملم
-
صالةنحاس
-
تصفيحمطلي بالقصدير
-
بلاستيكPA66
-
فئة القابلية للاشتعالUL94-V0
-
عمود2-14 عمود
-
Place of OriginGuangdong, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL,CE
-
Model NumberTP508H-76VF
-
Minimum Order Quantity1000 Piece/Pieces
-
الأسعارUSD 0.038-0.76 Per Pole
-
Packaging DetailsStandard Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
-
Delivery Time5-20 Working Days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month

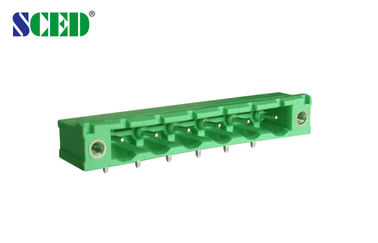

Male Pluggable Terminal Blocks 7.62mm Pitch 300V 18A UL94-V0
Male Pluggable Terminal Blocks 7.62mm Pitch 300V 18A UL94-V0
Detailed product Description:
Header, Male Sockets, Pitch: 7.62mm, 300V 18A, 2-14P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: ■Single Level
This male header match with female plugs’ series: TP508P-76F, TP508P-77F, TP508P-78F, TP508P-79F
Standard color: Green. Other colors also can be available.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
Applications:
Our products can be used in below fields and industries:
1.Electric Lighting, Industry Control, Automation, Rail Transportation
2.PCB, Frequency Converters, Server Site, Switch, Power Supply
3.Communication, Electric Power, Security, Medical Equipment and Military and so on.
Competitive Advantage:
- Flexible to design the exact part per customers’ demand
- High quality
- Competitive price
- Good after-sales service
- Quick response
- Lower and flexible MOQ
- more than 1000 models for selection
