تفاصيل المنتج:
شروط الدفع والشحن:
|
| عرض المحطة: | 18.8 ملم | تيار: | 150 أ |
|---|---|---|---|
| الجهد االكهربى: | 600 فولت | مجموعة الأسلاك: | 6-1 / 0 AWG |
| بلاستيك: | PA66 | فئة القابلية للاشتعال: | UL94-V0 |
| قفص المشبك: | صلب | طول تجريد: | 24 ملم |
| برغي: | م 6 | عزم الدوران: | 38-40 رطلًا في البوصة |
| تسليط الضوء: | wiring terminal block,feed through terminal blocks,feed through terminal blocks |
||

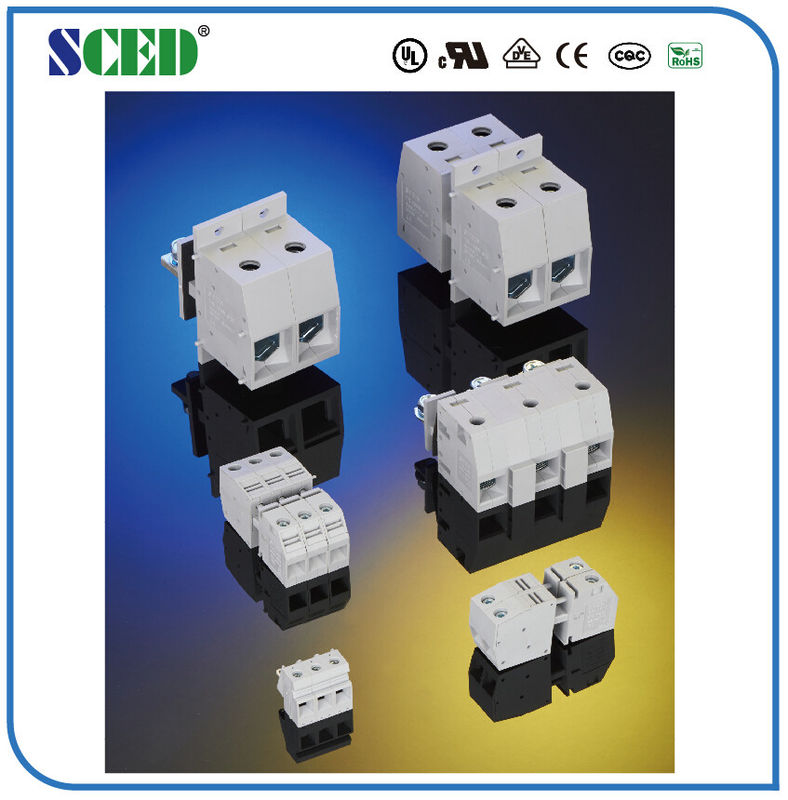

150A Through Panel Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width
Detailed product Description:
.

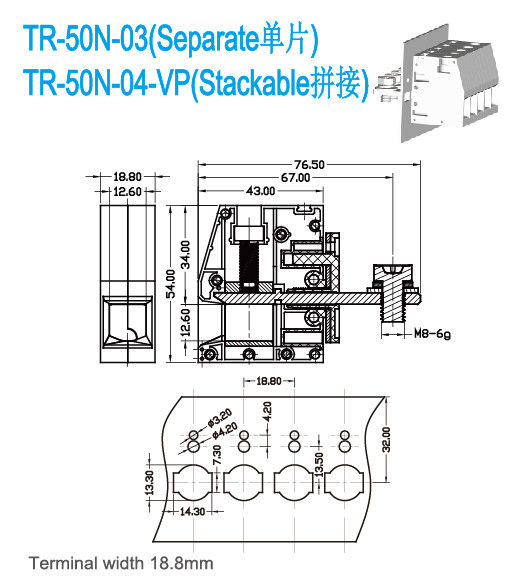

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 150 | 600 / 5 | |
| Wire Range AWG | 6-1/0 | 6-1/0 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 830 / 150 | 1000 / 150 | 1000 / 150 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 50 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Steel / Nickel Plated | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 24 | ||
| Screw / Torque / lbf.in | M6 / 38-40 | ||

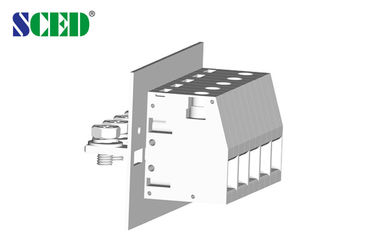

Pitch 18.8mm, 600V 150A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet
■Single Deck;
Standard color: Grey. Other colors are available, as well.
Applications:
1. They can be used in Communication, Medical Equipment, Frequency Converters, Power Supply
2. Besides, they can be also used in PCB, Server Site, Indutrial Control and Automation etc.
Competitive Advantage:
