| مكان المنشأ: | Shenzhen, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL, CE, CQC |
| رقم الموديل: | TR60-05 |
| الحد الأدنى لكمية: | 200 |
|---|---|
| الأسعار: | Get latest price |
| تفاصيل التغليف: | Standard Export Carton |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | T/T |
| القدرة على العرض: | 1KK poles each monthly |
| ملعب كورة قدم: | 20.00mm | أعمدة: | 4p |
|---|---|---|---|
| الجهد االكهربى: | 600V | تيار: | 65A |
| مواد الإسكان: | PA66 | مجلس التوصيل: | كوبر / النيكل مطلي |
| اللون: | أسود | العنصر: | تغذية من خلال موصل محطة ، محطة الحالية المرتفعة ، لوحة محطة كتلة جبل |
| تسليط الضوء: | wiring terminal blocks,power terminal block,power terminal block |
||

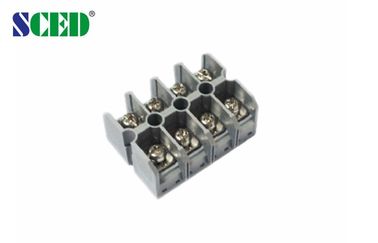

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
Data spec.
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600/65 | 600/65 | |
| Wire Range AWG | 3-20 | 3-20 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 76 | 1000 / 76 | 1000 / 76 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 25 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Conduction Board Plating | Cooper/Nickel Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| Stripping Length mm | 14-16 | ||
| Screw / Torque / lbf.in | M 5 / 14 - 18 | ||

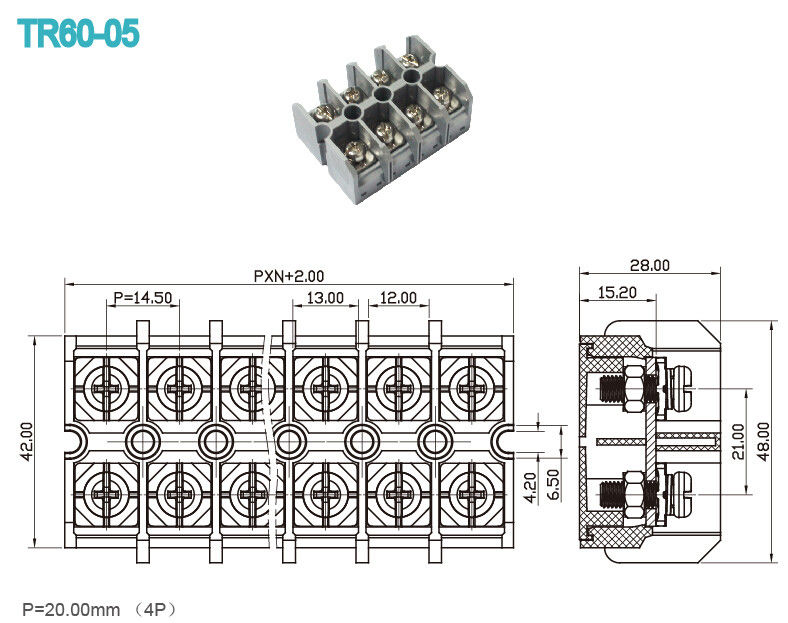

Drawing Specifications:
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

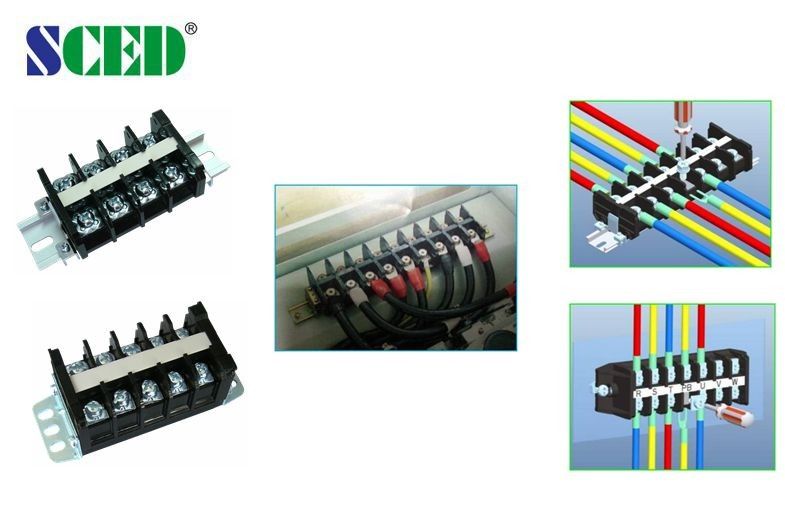

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Drawing Photo
Factory Photo:
Certificates photo:
