| مكان المنشأ: | Shenzhen, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL, CE |
| رقم الموديل: | TP381H-04 |
| الحد الأدنى لكمية: | 500 |
|---|---|
| الأسعار: | Get latest price |
| تفاصيل التغليف: | Standard Export Carton |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | T/T |
| القدرة على العرض: | 1KK poles each monthly |
| Type: | male terminal | Rated Voltage: | 150V |
|---|---|---|---|
| Rated Current: | 10A | Material: | PA66 |
| Color: | Grey | Terminal: | Phosphor Bronze / Tin Plated |
| تسليط الضوء: | power distribution terminal block,power terminal block connector,power terminal block connector |
||

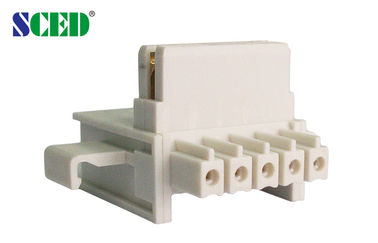

10A Male And Female Plug In Terminal Block Connector 5 Pin Grey Color
Details:
■Single Level; □Double Levels; □Triple Levels
This part is design for modular housing, for further information, please contact us and we will response you very quickly.
Parameter:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 150/10 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 10 | 160 / 10 | 320 / 10 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Other Data | |||
| Pin Dimension mm | 0.8 x 0.8 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Drawing Photo
