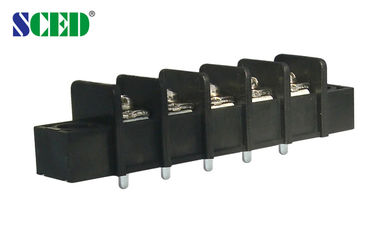

25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black

25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black

المنتجات - الحاجز الطرفية كتلة
  • إبراز

    barrier type terminal block,pcb terminal blocks

    ,

    pcb terminal blocks

  • ملعب كورة قدم
    11 ملم
  • اللون
    أسود
  • عمود
    2-20 عمودًا
  • الجهد االكهربى
    300 فولت
  • تيار
    25 أ
  • مدخل السلك
    زاوية مستقيمة
  • تصنيف الجهد الكهربائي
    لا يوجد شذوذ خلال 1 دقيقة
  • فئة القابلية للاشتعال
    UL94 ، V-0
  • مقاومة العزل
    فوق DC500V ، 500MΩ
  • Place of Origin
    China,Guangdong
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL,CE
  • Model Number
    TB1100-01F
  • Minimum Order Quantity
    500 Piece/Pieces
  • الأسعار
    USD 0.045-0.089
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black

  • 25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
  • 25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
  • 25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
  • 25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black



Detailed product Description:



Pitch 11.00mm, 300V 30A, 2P-20P, Barrier Terminal blocks, power terminal blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

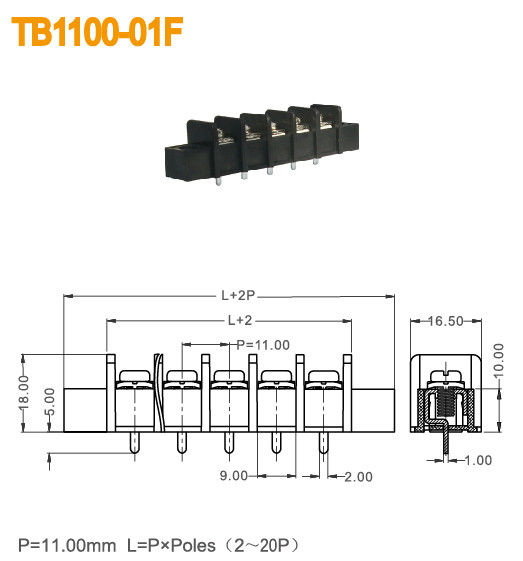

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30   300 / 10
Wire Range AWG 10-18   10-18
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.6
Stripping Length mm 9-10
Screw / Torque / lbf.in M 4 / 10-13



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
