مكان المنشأ: | Guanfdong,China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL,CE,CUL,CQC and VDE etc. |
رقم الموديل: | TJ508-07 |
الحد الأدنى لكمية: | 500 Piece/Pieces |
---|---|
الأسعار: | USD 0.04-0.085 PER Pole |
تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
وقت التسليم: | 5-20 working days |
شروط الدفع: | T/T, L/C |
القدرة على العرض: | 1000000 Pole/Poles per Month |
اللون: | لون أخضر | قطع معدنية: | نحاس |
---|---|---|---|
ملعب كورة قدم: | 5.08 ملم | الجهد االكهربى: | 300 فولت |
تيار: | 10 أ | أعمدة: | 2-24 عمودًا |
مدخل السلك: | زاوية مستقيمة | تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة |
فئة القابلية للاشتعال: | UL94 ، V-0 | مقاومة العزل: | فوق DC500V ، 500MΩ |
تسليط الضوء: | pcb terminal block connectors,pcb mount terminal block,pcb mount terminal block |

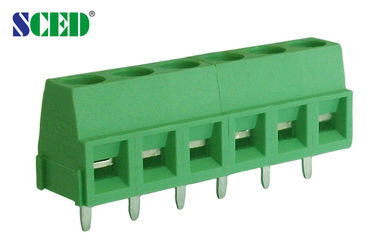

Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14-30 AWG
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available.
Applications:
It can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military etc..

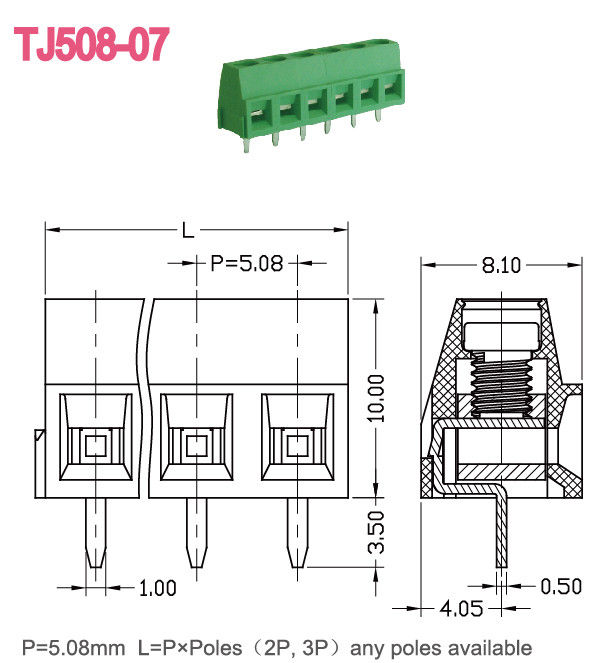

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 | 300/10 | |
Wire Range AWG | 12-26 | 12-26 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.4 | ||
Stripping Length mm | 6-7 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 |
Competitive Advantage:
