5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles

5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles

المنتجات - بب محطة كتلة
  • إبراز

    pcb terminal block connectors,pcb mount terminal block

    ,

    pcb mount terminal block

  • اللون
    لون أخضر
  • ملعب كورة قدم
    5.0 مم
  • تيار
    10 أ
  • الجهد االكهربى
    300 فولت
  • بلاستيك
    PA66
  • قطع معدنية
    نحاس
  • فئة القابلية للاشتعال
    UL94 ، V-0
  • تصنيف الجهد الكهربائي
    لا يوجد شذوذ خلال 1 دقيقة
  • مقاومة العزل
    فوق DC500V ، 500MΩ
  • مقاومة التواصل
    أقل من 8 مΩ
  • Place of Origin
    Guangdong,China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL,CUL,CE,CQC and VDE etc.
  • Model Number
    TJ500-18-T1
  • Minimum Order Quantity
    500 Piece/Pieces
  • الأسعار
    USD 0.038-0.08
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles

  • 5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles
  • 5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles
  • 5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles
  • 5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

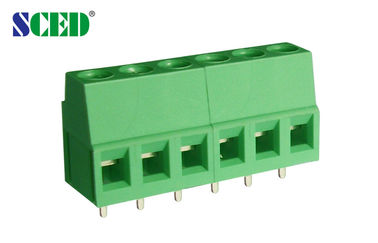

5.0mm PCB Terminal Block 10A Green PA66 Brass 300V 2-28 Poles



Detailed product Description:



Pitch 5.0mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Communication, Electric Power, Security, Medicine Equipment etc.

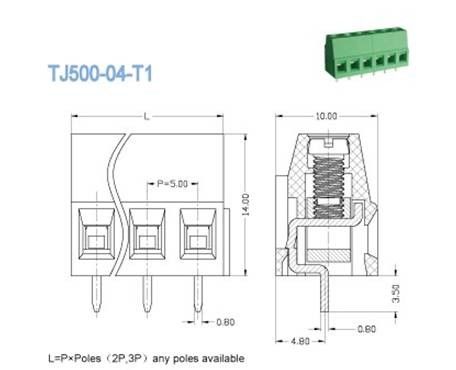

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
