| مكان المنشأ: | Guangdong,China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CUL,CE,CQC and VDE etc. |
| رقم الموديل: | TP508P-00 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.045-0.09 per pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 working days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 5.08 ملم | أعمدة: | 2-24 عمودًا |
|---|---|---|---|
| اللون: | لون أخضر | نوع: | الأجزاء الأنثوية |
| الجهد االكهربى: | 300 فولت | تيار: | 18 أ |
| بلاستيك: | PA66 | قطع معدنية: | نحاس |
| فئة القابلية للاشتعال: | UL94 ، V-0 | ||
| تسليط الضوء: | electrical terminal blocks,plug in terminal block,plug in terminal block |
||

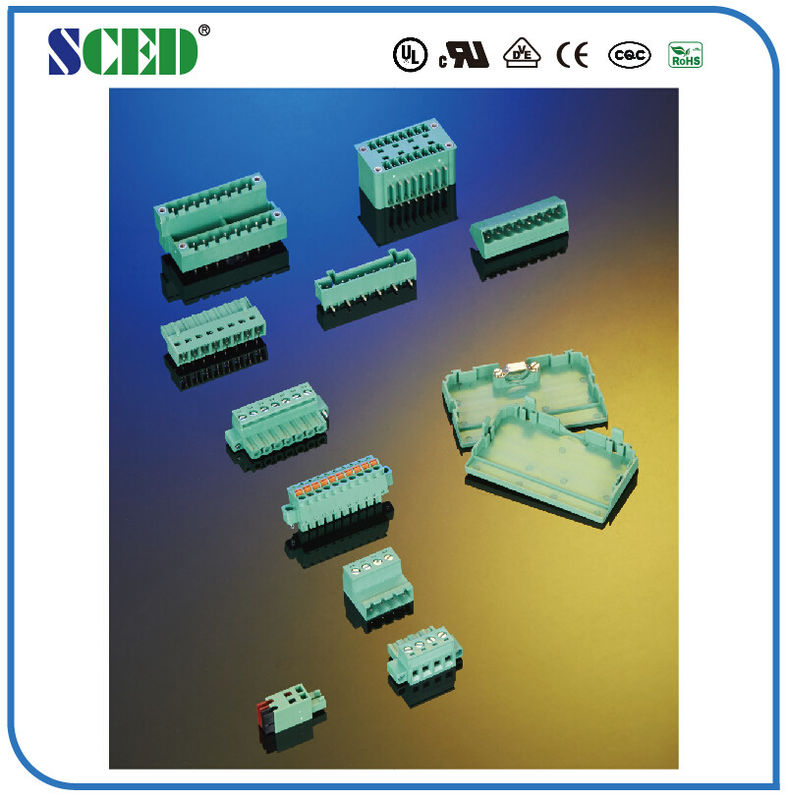

Pitch 5.08mm Pluggable Terminal Blocks M3 Screw 300V/18A Female Parts
Detailed product Description:
Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-24P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 18 |
|
300 / 18 |
|
Wire Range AWG |
12-30 |
|
12-30 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 18 |
320 / 18 |
630 / 18 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
7 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Competitive Advantage:
