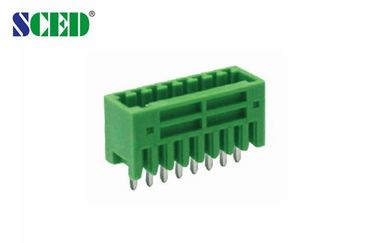

150V 4A 2.50mm Male Spring Terminal Blocks Pcb Connector 150V 4A 2.50mm
-
إبراز
power terminal block connector,power distribution terminal block
,power distribution terminal block
-
اكتبكتل طرفية الربيع ، كتل طرفية قابلة للتوصيل ، كتل طرفية في المكونات
-
ملعب كورة قدم2.50mm
-
عدد جهات الاتصال2P-24P
-
جهد فلطيّ مصنّف150V
-
تيار مصنّف4A
-
اللونأخضر
-
تطبيقاتثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك
-
العنصرموصل الذكور ، نوع الذكور محطة للتوصيل
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE
-
Model NumberTP254H-00
-
Minimum Order Quantity500 pcs
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
150V 4A 2.50mm Male Spring Terminal Blocks Pcb Connector 150V 4A 2.50mm
2 - 24 Number Of Contact Male Spring Terminal Blocks Pcb Connector 150V 4A 2.50mm
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
How to order:
■Single Level; □Double Levels; □Triple Levels
This male socket match with female plug’ series: TP254P-01
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
150 / 4 |
|
|
|
IEC Technical Data |
|
|
|
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 4 |
250 / 4 |
250 / 4 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
|
|
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 (THR: PA46 UL94, V-0) |
||
|
Clamp Cage / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
1.2 |
||
|
Pin Dimension mm |
0.8*0.8 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing photo:
tag: plug in terminal block, male terminal block, male socket
