مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TP254P-01 |
الحد الأدنى لكمية: | 500 pcs |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
نوع: | كتل طرفية الربيع ، كتل طرفية قابلة للتوصيل ، كتل طرفية في المكونات | ملعب كورة قدم: | 2.50mm |
---|---|---|---|
عدد جهات الاتصال: | 2P-24P | مجموعة الأسلاك: | 28-20 AWG |
جهد فلطيّ مصنّف: | 150V | تيار مصنّف: | 4A |
اللون: | أخضر | تطبيقات: | ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك |
تسليط الضوء: | power terminal block connector,power distribution terminal block,power distribution terminal block |

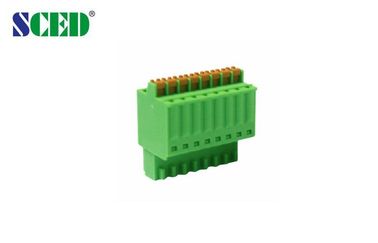

2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector 150V 4A 2.50mm
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
How to order:
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP254H-00 TP254H-00V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

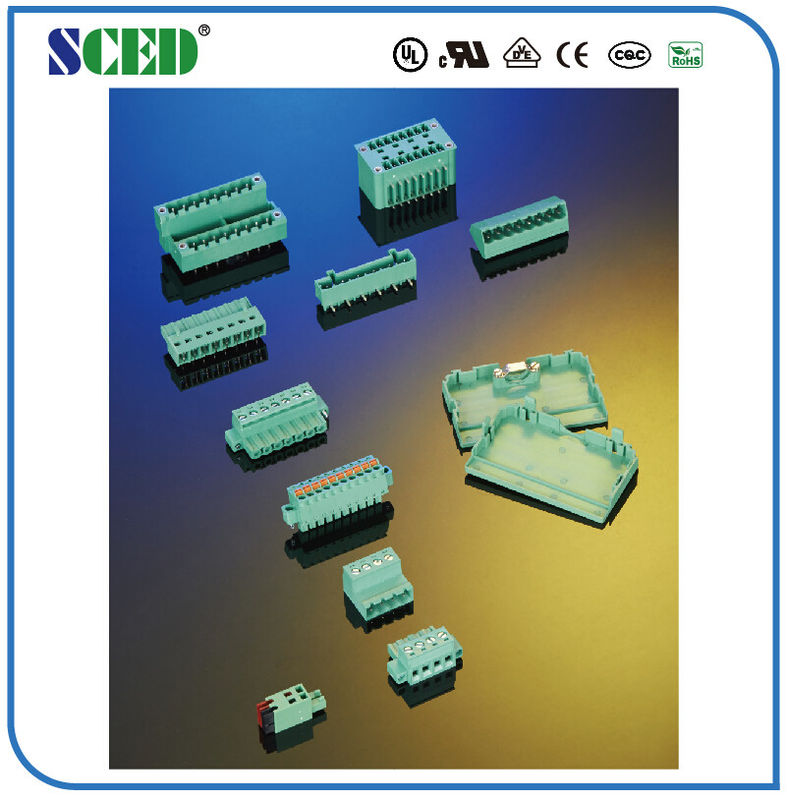

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
150 / 4 |
|
|
Wire Range AWG |
28-20 |
|
|
IEC Technical Data |
|
|
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 4 |
250 / 4 |
250 / 4 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
0.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Stainless steel |
||
Contactor / Plating |
Phosphor Bronze / Tin Plated |
||
Other Data |
|
||
Stripping Length mm |
7 |
||
Screw / Torque / lbf.in |
|
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing photo:
