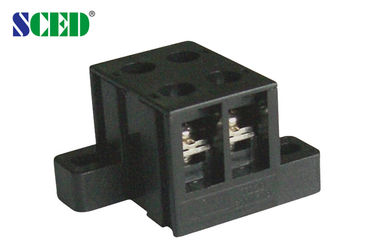

9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A

9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A

المنتجات - لوحة جبل كتلة المحطة
  • إبراز

    panel mount terminal block connector,pcb mount terminal blocks

    ,

    pcb mount terminal blocks

  • Type
    Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block
  • Pitch
    9.50mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    24-12
  • Rated Voltage
    300V
  • Rated Current
    20A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL, CE
  • Model Number
    TR20-00-2P
  • Minimum Order Quantity
    500
  • الأسعار
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A

  • 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A
  • 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A
  • 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A
  • 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

9.50mm Screw barrier Terminal 2 Poles Electrical Panel Mount Terminal Block 300V 20A

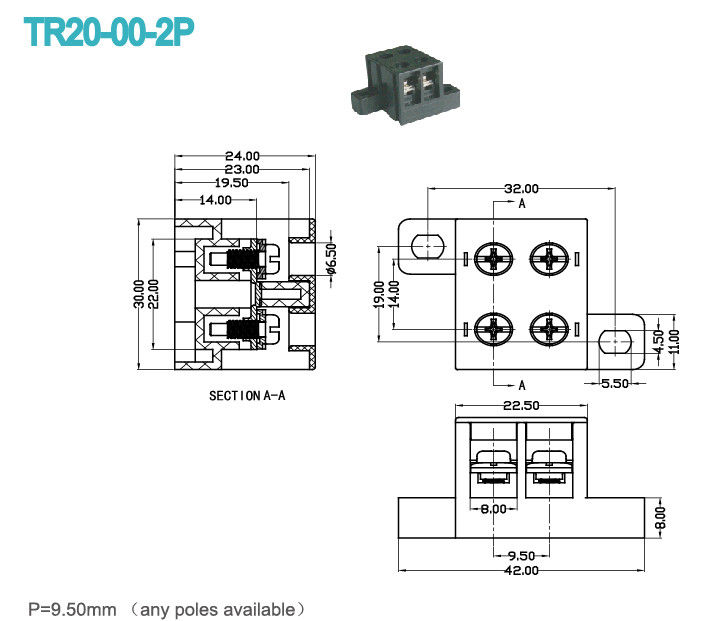

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 20

300 / 20



Wire Range                               AWG

24-12

24-12



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

500 /20

800 / 20

1000 / 20

Rated Surge Voltage                     KV

6

8

8

Rated Connecting Capacity           mm2

3.5

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                mm

8-9

Screw Torque                    mm

M3.5 / 7-10





How to order:
9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Barrier Type Electrical Panel Mount Terminal Block 9.50mm 300V 20A Single Level

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

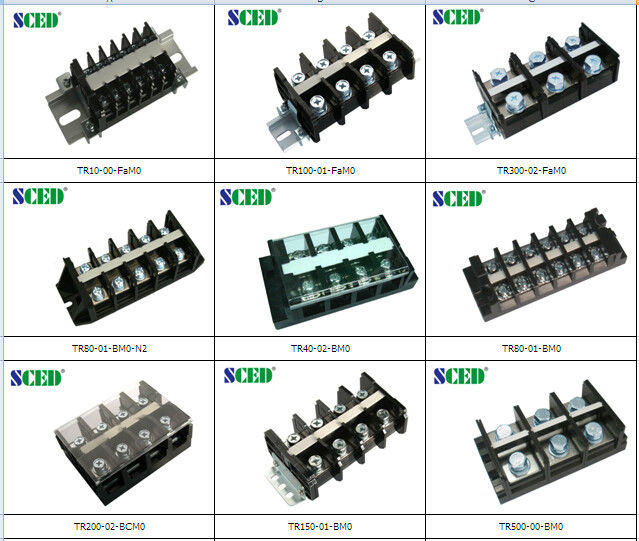

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks






9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A 1


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Factory Photo

 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A 2



Application:



9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A 3
