Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm
-
إبراز
screw type terminal block,screw connection terminal block
,screw connection terminal block
-
تطبيقاتثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك
-
اللونأخضر
-
عدد جهات الاتصال2P-28P
-
تيار مصنّف10A
-
جهد فلطيّ مصنّف300V
-
نوعالمسمار نمط المشبك
-
ملعب كورة قدم3.81mm
-
الدرجة العلمية45 درجة سلك مدخل
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE
-
Model NumberTJ381-11
-
Minimum Order Quantity500
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability2KK poles each monthly
Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm
Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm
Detailed
Pitch 3.81mm,
300V 10A, 2P-28P,
PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Spec.
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
|
|
Wire Range AWG |
16-24 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 10 |
200 / 10 |
400 / 10 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.0 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2 |
||
|
Stripping Length mm |
4-5 |
||
|
Screw / Torque / lbf.in |
M2 / 1.8-2.0 |
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand

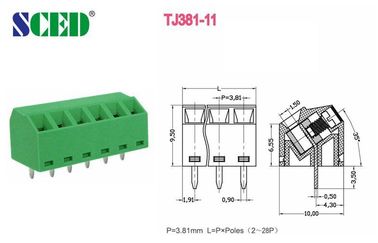

Drawing:
Tag:
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer
