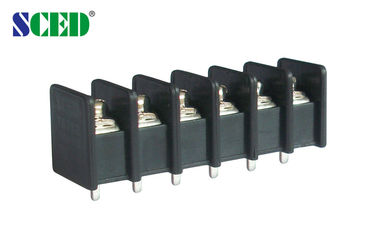

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector

المنتجات - الحاجز الطرفية كتلة
  • إبراز

    barrier type terminal block,pcb terminal blocks

    ,

    pcb terminal blocks

  • ملعب كورة قدم
    7.62 ملم
  • تيار
    15 أ
  • الجهد االكهربى
    300 فولت
  • أعمدة
    2-24 عمودًا
  • بلاستيك
    PBT
  • برغي
    م 3
  • فئة القابلية للاشتعال
    UL94-V0
  • مقاومة التواصل
    أقل من 8 مΩ
  • مقاومة العزل
    فوق DC500V ، 500MΩ
  • تصنيف الجهد الكهربائي
    لا يوجد شذوذ خلال 1 دقيقة
  • Place of Origin
    Guangdong,China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    UL,CUL,CQC,CE, VDE etc.
  • Model Number
    TB762-01-D1
  • Minimum Order Quantity
    500 Piece/Pieces
  • الأسعار
    USD 0.05-0.12
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector

  • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
  • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
  • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
  • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector



Detailed product Description:



Pitch 7.62mm, 300V 15A, 2P-22P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:



It can be used in the followings:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.

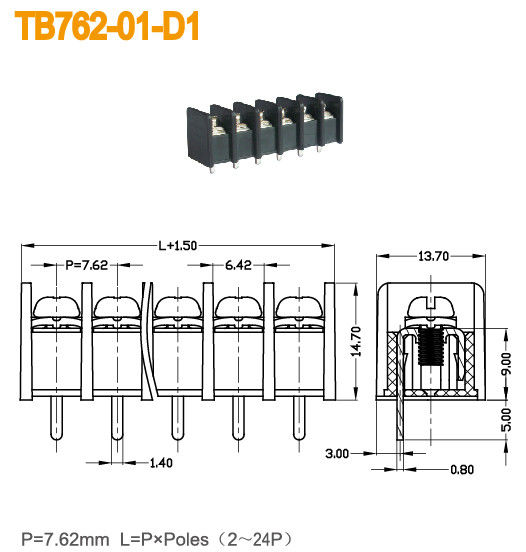

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/15



300/10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.8

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. 10 main series and more than 1000 models for selection
  5. OEM and ODM service can be provided
