| مكان المنشأ: | Guangdong China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CUL, CE, VDE etc. |
| رقم الموديل: | TR-35N-03 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.57-1.24 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| بلاستيك: | PA66 | قفص المشبك: | صلب |
|---|---|---|---|
| تصفيح: | تصفيح بمعدن النيكل | عرض المحطة: | 15.1 ملم |
| مادة العزل: | PA66 | تيار: | 75 أ |
| الجهد االكهربى: | 600 فولت | برغي: | م 5 |
| مجموعة الأسلاك: | 2-8 أوغ | مجلس التوصيل: | نحاس |
| تسليط الضوء: | panel mount terminal block connector,pcb mount terminal blocks,pcb mount terminal blocks |
||

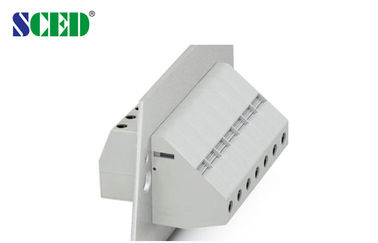

Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width
Detailed product Description:
Pitch 15.1mm, 600V 115A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
1.PCB, Frequency Converters, Server Site, Switch
2.Power Supply, Electric Lighting
3.Industry Control, Automation, Rail Transportation
4.Communication, Electric Power, Security
5.Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 75 |
|
600 / 5 |
|
Wire Range AWG |
2-8 |
|
2-8 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 125 |
800 / 125 |
1000 / 125 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
25 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
19 |
||
|
Screw / Torque / lbf.in |
M5 / 22-25 |
||
Competitive Advantage:
