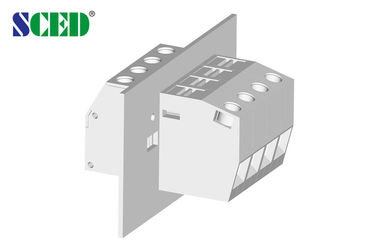

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A

المنتجات - من خلال لوحة الطرفية كتل
  • إبراز

    wiring terminal block,feed through terminal blocks

    ,

    feed through terminal blocks

  • عرض المحطة
    12.1 ملم
  • تيار
    85 أ
  • الجهد االكهربى
    600 فولت
  • مجموعة الأسلاك
    4-20 أوغ
  • بلاستيك
    PA66
  • فئة القابلية للاشتعال
    UL94-V0
  • برغي
    م 5
  • عزم الدوران
    22-25 رطل في البوصة
  • طول التجريد
    16 ملم
  • مدخل السلك
    زاوية مستقيمة
  • Place of Origin
    Guangdong,China
  • اسم العلامة التجارية
    SCED
  • إصدار الشهادات
    CE,UL,CUL, CQC and VDE etc.
  • Model Number
    TR-16N-02
  • Minimum Order Quantity
    500 Piece/Pieces
  • الأسعار
    USD 0.45-0.92 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A

  • White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A
  • White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A
احصل على السعر ﺎﺘﺼﻟ ﺍﻶﻧ



White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A



Detailed product Description:



Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Black. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 85



600 / 5

Wire Range                       AWG

4-20



4-20

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

800 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

16

Screw / Torque                    / lbf.in

M5 / 22-25





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A 0White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A 1
