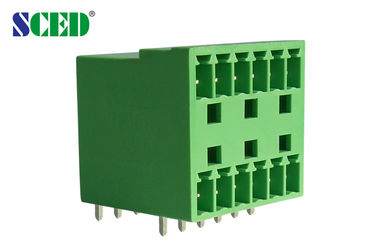

3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block
-
إبراز
power distribution terminal block,electric terminal block
,electric terminal block
-
سلك مدخلمدخل سلك الزاوية اليمنى
-
تطبيقاتالكلور ، محولات التردد ، الخ
-
اللونأخضر
-
عدد جهات الاتصالأي البولنديين المتاحة
-
ملعب كورة قدم3.81mm
-
تيار مصنّف8A
-
جهد فلطيّ مصنّف300V
-
اكتبسد العجز في كتل المحطة الطرفية ، كتل محطة للتوصيل
-
كلمات الأساسيةبنات المحطة الطرفية
-
موادPA66
-
Place of OriginShenzhen, China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتUL, CE
-
Model NumberTP381H-01V
-
Minimum Order Quantity500
-
الأسعارGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block
3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Description:
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double Levels; □Triple Levels
This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03,
TP381P-04
Standard color: Green. Other colors also available, please refer to below How to Order and select the
color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 8 |
|
|
|
IEC Technical Data |
|
|
|
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 8 |
160/8 |
320/8 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
1.2 |
||
|
Pin Dimension mm |
0.8 x 0.8 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
