تفاصيل المنتج:
شروط الدفع والشحن:
|
| Type: | PCB | Pitch: | 3.81mm |
|---|---|---|---|
| Nom.Voltage: | 300V | Nom.Current: | 10A |
| Wire Range: | 16-24 A .W.G | Insulation material: | PA66 |
| Poles: | 2P 3P Any poles | Key words: | PCB Screw terminal block |
| تسليط الضوء: | pcb screw terminal blocks,pcb mount terminal block,pcb mount terminal block |
||

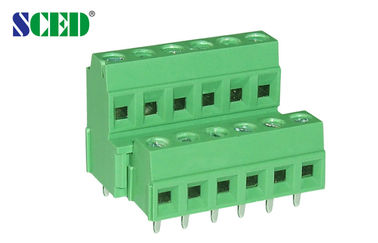

3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v
Parameter:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 10 |
|
|
|
Wire Range AWG |
16-24 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 10 |
200 / 10 |
400 / 10 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.0 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.3 |
||
|
Stripping Length mm |
4-5 |
||
|
Screw / Torque / lbf.in |
M2 / 1.8-2.0 |
||
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Drawing Specifications
Detail Photos
