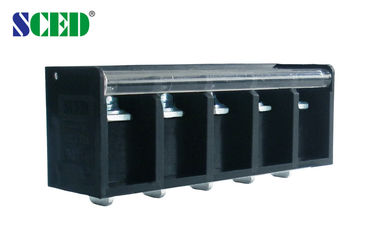

20mm Power Distribution Terminal Block Barrier Type Terminal Block With Plastic Protective Cover
-
إبراز
power distribution terminal block,electric terminal block
,electric terminal block
-
ملعب كورة قدم20 ملم
-
الجهد االكهربى600 فولت
-
عمود2-14 عمود
-
تيار75 أ
-
برغيم 6
-
بلاستيكPBT
-
فئة القابلية للاشتعالUL94-V0
-
تصفيحمطلي بالقصدير
-
صالةنحاس
-
اللونأسود
-
Place of OriginGuangdong,China
-
اسم العلامة التجاريةSCED
-
إصدار الشهاداتCE,UL,CUL,CQC,VDE etc.
-
Model NumberTB2000-01-C
-
Minimum Order Quantity500 Piece/Pieces
-
الأسعارUSD 0.244-0.488 Per Pole
-
Packaging DetailsStandard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
-
Delivery Time5-20 days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
20mm Power Distribution Terminal Block Barrier Type Terminal Block With Plastic Protective Cover
20mm Power Distribution Terminal Block Barrier Type Terminal Block With Plastic Protective Cover
Detailed product Description:
Pitch 20.00mm, 600V 75A, 2-14P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black.
Other colors also available.
Applications:
Normally, it can be used in the fileds of PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 75 |
600 / 75 |
600 / 5 |
|
Wire Range AWG |
26-4 |
26-4 |
26-4 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
1000 / 75 |
1000 / 75 |
1000 / 75 |
|
Rated Surge Voltage KV |
12 |
12 |
12 |
|
Rated Connecting Capacity mm2 |
16 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
2.4x10.4 |
||
|
Stripping Length mm |
16-18 |
||
|
Screw / Torque / lbf.in |
M6 / 18-22 |
||
Competitive Advantage:
We have 12 years of experience in designing, manufacturing and marketing terminal blocks. We have 10 main series and more than 1000 models for selection. Products have gained CE, UL, CUL, CQC and VDE etc. Stable good quality products with reasonable price can be provided.
تُباع منتجاتنا في جميع أنحاء العالم ، ويمكنك أن تطمئن إلى العملية الكاملة لمنتجاتنا.
