| مكان المنشأ: | Guangdong China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL,CUL,CQC,VDE etc. |
| رقم الموديل: | TP381P-03 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.074-0.148 Per pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| نوع: | الجزء الأنثوي | اللون: | لون أخضر |
|---|---|---|---|
| ملعب كورة قدم: | 3.81 ملم | تيار: | 8 أ |
| الجهد االكهربى: | 300 فولت | بلاستيك: | PA66 |
| مقاومة التواصل: | أقل من 8 مΩ | تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة |
| فئة القابلية للاشتعال: | UL94 ، V-0 | مقاومة العزل: | فوق DC500V ، 500MΩ |
| تسليط الضوء: | electrical terminal blocks,plug in terminal block,plug in terminal block |
||

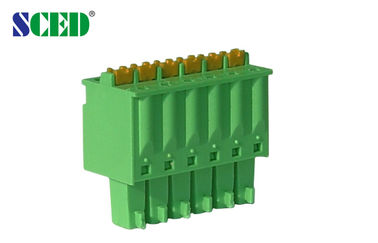

3.81mm 300v 8A Pluggable Terminal Block Plug Female Sockets 2P - 22P Brass
Detailed product Description:
3.81mm 300v 8A Pluggable Terminal Block Plug Female Sockets 2P - 22P Brass
■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05
Standard color: Green. Other colors also available, for example: Grey, Black, Yellow, Blue and White and so on.
Applications:
Normally our products will be used in below fileds:
1.PCB, Frequency Converters, Server Site, Switch
2.Power Supply, Electric Lighting, Industry Control
3.Automation, Rail Transportation, Communication, Electric Power
4.Security, Medicine Equipment, Military, Elevator
5. And other industries etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 8 |
|
|
|
Wire Range AWG |
16-30 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring Clamp |
Stainless Steel |
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
Competitive Advantage:
We have 12 years of experience in designing, manufacturing and marketing termianl blocks. Stable good quality with competive price can be provided. We have 10 main series and more than 1000 models for selection.
