| مكان المنشأ: | Guangdong,China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL,CUL,CQC,VDE etc. |
| رقم الموديل: | TP-508H-77V |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.021-0.042 |
| تفاصيل التغليف: | 5-20 days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| اللون: | لون أخضر | ملعب كورة قدم: | 7.62 ملم |
|---|---|---|---|
| نوع: | جزء الذكور | تيار: | 18 أ |
| الجهد االكهربى: | 300 فولت | عمود: | 2-16 عمود |
| فئة القابلية للاشتعال: | UL94-V0 | بلاستيك: | PA66 |
| صالة: | نحاس | تصفيح: | مطلي بالقصدير |
| تسليط الضوء: | power distribution terminal block,power terminal block connector,power terminal block connector |
||

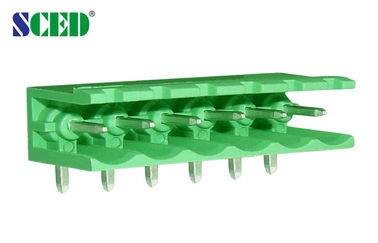

Green Plug In Terminal Block Pitch 7.62mm Brass Terminal PA66 300V
Detailed product Description:
Header, Male Sockets, Pitch: 7.62mm, 300V 18A, 2-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B
|
C |
D |
|
Rated Voltage / Current V/A |
300/18 |
|
300/18 |
|
Wire Range AWG |
12-30 |
|
12-30 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
400 / 18 |
630 / 18 |
1000 / 18 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Contactor / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
10 |
||
|
Screw / Torque / lbf.in |
M2.5 / 3-3.5 |
||
Competitive Advantage:
