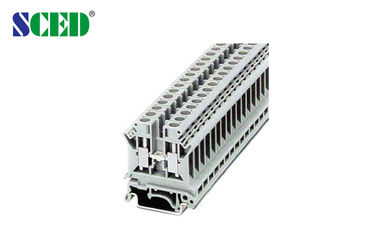

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail

  • UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail
UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail
تفاصيل المنتج:
مكان المنشأ: Guangdong China
اسم العلامة التجارية: SCED
إصدار الشهادات: UL,CUL,CE, CQC,VDE etc.
رقم الموديل: TR-6N
شروط الدفع والشحن:
الحد الأدنى لكمية: 500 Piece/Pieces
الأسعار: USD 0.169-0.338 Per Pole
تفاصيل التغليف: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
وقت التسليم: 5-20 days
شروط الدفع: L/C, T/T
القدرة على العرض: 1000000 Pole/Poles per Month
اتصل
مفصلة وصف المنتج
تيار: 50 أ الجهد االكهربى: 600 فولت
مدخل السلك: زاوية مستقيمة اللون: رمادي
عرض المحطة: 8.2 ملم مقاومة التواصل: أقل من 8 مΩ
تصنيف الجهد الكهربائي: لا يوجد شذوذ خلال 1 دقيقة فئة القابلية للاشتعال: UL94 ، V-0
مقاومة العزل: فوق DC500V ، 500MΩ برغي: م 3
تسليط الضوء:

rail mount terminal block,grounding terminal block

,

grounding terminal block

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width: 8.2mm Din Rail



Detailed product Description:



Terminal width: 8.2mm, 600V 50A, AWG:26-8, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                       Grey

TR-6N

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail 0End Cover                      Grey



D-TR-3/16

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail 1Fixed Bridge



FBI 10-8        Imax: 57A

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail 2Insertion Bridge



EB 10-8        Imax: 57A

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail 3Separating Plate



TS-K

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail 4Partition Plate



ATP-TR

Zack Strip                      White

ZB8

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions                             mm

8.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M4 / 1.5-1.8

Stripping Length                          mm

10

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             57 / 10

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

               Ⅲ



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail 5
