مكان المنشأ: | Guangdong, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | CE,UL,CUL,CQC and VDE etc. |
رقم الموديل: | TJ381-12V |
الحد الأدنى لكمية: | 1000 Piece/Pieces |
---|---|
الأسعار: | USD 0.051-0.120 Per Pole |
تفاصيل التغليف: | 1000000 Pole/Poles per Month |
وقت التسليم: | 5-20 Working days |
القدرة على العرض: | 1000000 Pole/Poles per Month |
ملعب كورة قدم: | 3.5 ملم | مادة العزل: | LCP |
---|---|---|---|
تيار: | 10 أ | الجهد االكهربى: | 300 فولت |
أعمدة: | 2-24 عمودًا | صالة: | البرونز الفسفوري |
مقاومة العزل: | فوق DC500V ، 500MΩ | مقاومة التواصل: | أقل من 8 مΩ |
فئة القابلية للاشتعال: | UL94 ، V-0 | تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة |
تسليط الضوء: | wiring terminal blocks,pcb spring terminal block,pcb spring terminal block |

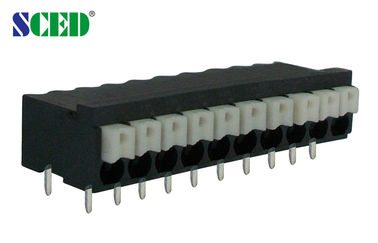

10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
Detailed product Description:
Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, Screwless terminals
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Normally our products can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control.
Besides, they can be also used in Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

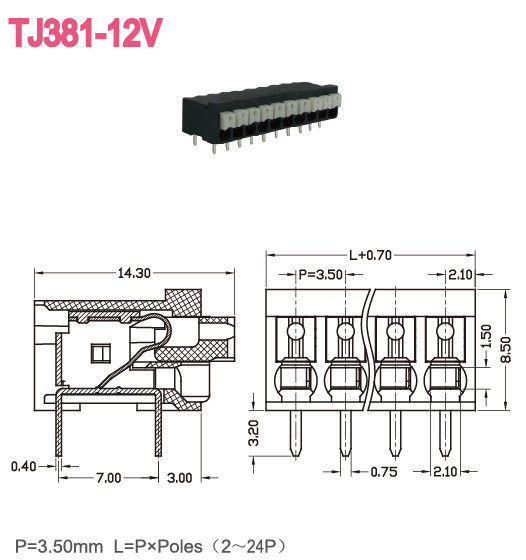

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 | ||
Wire Range AWG | 16-22 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 10 | 250 / 10 | 400 / 10 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | LCP / UL94, V-0 | ||
Spring / Plating | Stainless Steel / - | ||
Terminal / Plating | Phosphor Bronze / Tin Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.1 | ||
Stripping Length mm | 8-9 |
Competitive Advantage:
We have more than 13 years of expreience in designing, manufacturing and marketing terminal blocks. 10 main series and more than 1000 series for selection. Stable high quality and competitive price. Products have UL, CE, CUL, CQC and VDE etc.
