تفاصيل المنتج:
شروط الدفع والشحن:
|
| مجموعة الأسلاك: | 12-24 أوغ | أعمدة: | 2-24 عمودًا |
|---|---|---|---|
| برغي: | M3 الصلب | ملعب كورة قدم: | 5.08 ملم |
| تيار: | 10 أ | الجهد االكهربى: | 300 فولت |
| مادة العزل: | PA66 | فئة القابلية للاشتعال: | UL94-V0 |
| عزم الدوران: | 4.4-5.3 رطل في البوصة | طول التجريد: | 6-7 ملم |
| تسليط الضوء: | screw type terminal block,screw connection terminal block,screw connection terminal block |
||
Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Applications:
Our products can be used in lots of fileds and industries, such as
1.Power Supply, Communication, Industrial Control, Automation
2.PCB, Electronics, Electric Lighting, Frequency Converters
3. Military, Medical Equipment, Rail Transportation, Security and so on.
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Wire Inlet:■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Decks:■Single Deck; □Double decks; □Triple decks
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:

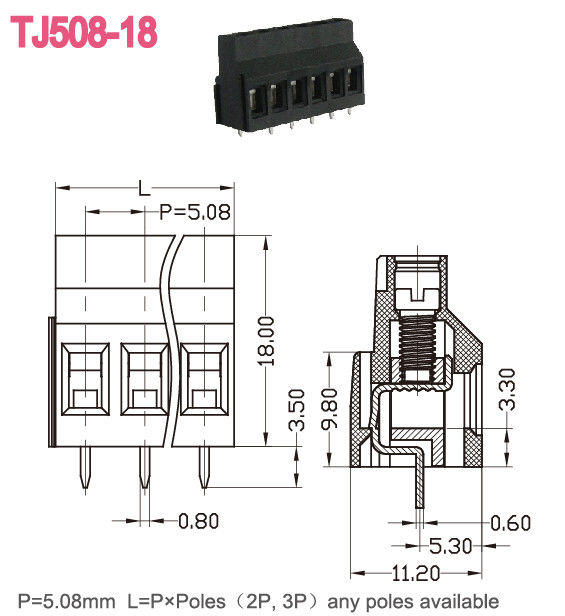

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 10 | 300 / 10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Stripping Length mm | 6-7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
