Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector

Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector

    • Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
    • Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
    • Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
  • Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector

    تفاصيل المنتج:

    Place of Origin: Shenzhen, China
    اسم العلامة التجارية: SCED
    إصدار الشهادات: UL, CE
    Model Number: TP508H-10F-D8

    شروط الدفع والشحن:

    Minimum Order Quantity: 500pcs
    الأسعار: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    سلك مدخل: مدخل السلك العمودي تطبيقات: الكلور ، محول التردد ، الخ
    اللون: أخضر عدد جهات الاتصال: 2-22pins
    ملعب كورة قدم: 5.08mm تيار مصنّف: 18A
    جهد فلطيّ مصنّف: 300V نوع: أنثى كتل محطة للتوصيل

    Femae Pluggable Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector




    Quick Detail



    1. Pluggable terminal blocks is widely used in servo drive, security commucation, power industry, energy conservation and etc.



    1. can be connected with TP508H-06F


    2. The pluggable system work toghter by plug and header.



    3. The main characteristics is they can be achieved power on or off freely.



    4. The plug can be plugged in and out very conveniently.



    5. Material: Plastic housing is PA66(UL94 V-0), operating temperature: -40℃~+105℃ Clamp cage and header terminal using brass, spring clamp with phosphor bronze, screw using high quality steel.




    Standard color: Green color. Other colors also available, please refer to below How to Order and

    select the color

    you want.

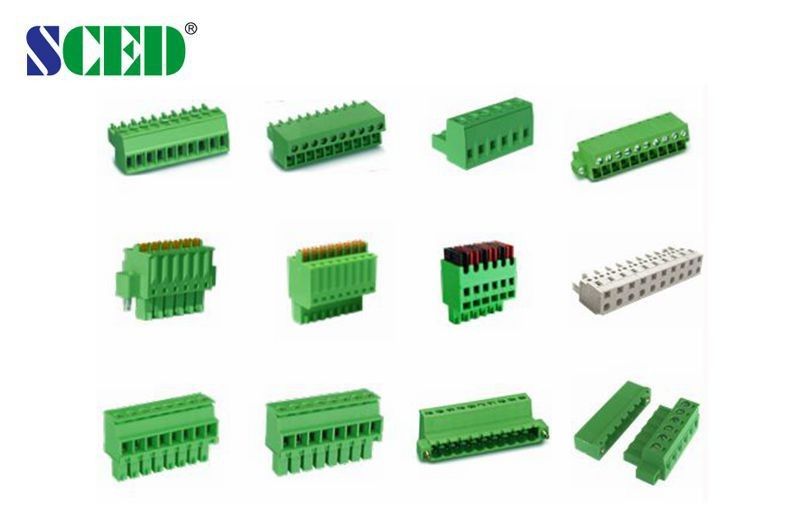

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





    How to order:
    Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

     Military,
    Elevator, etc..


    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 18





    Wire Range                                AWG







    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    320 / 24

    320 / 24

    630 / 24

    Rated Surge Voltage                   KV

    4

    4

    4

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0 (THR: PA46, UL94, V-0)

    Terminal / Plating

    Copper / Tin Plated

    Other Data



    PCB Hole Diameter               mm

    φ1.5

    PinDimension                       mm

    0.4 x 1.1




    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand​​



    Drawing Photo

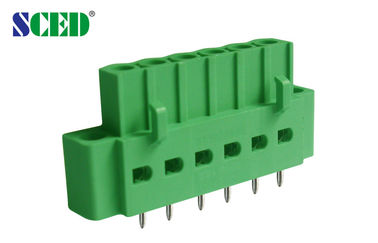

    Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector

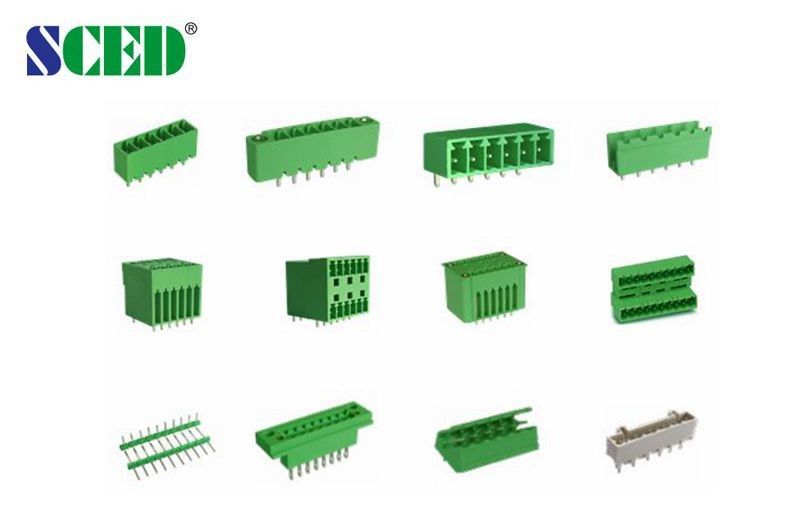

    can be connected with TP508H-06F

    Femae Pluggable Plug In Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
