| مكان المنشأ: | Guangdong,China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL.CE,CUL,VDE,CQC etc. |
| رقم الموديل: | TR-10N-06 |
| الحد الأدنى لكمية: | 500 PCS |
|---|---|
| الأسعار: | USD 0.338-0.542 per pole |
| تفاصيل التغليف: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198 |
| وقت التسليم: | 5-20 days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 10.10mm | تيار: | 600V |
|---|---|---|---|
| الجهد االكهربى: | 65A | تصاعد الجهد الجهد: | لا غير طبيعي في 1 دقيقة |
| فئة الالتهاب: | UL94 ، V-0 | الاتصال بالمقاومة: | أقل من 8mΩ |
| عزل مقاومة: | فوق DC500V ، 500MΩ | ||
| تسليط الضوء: | wiring terminal block,feed through terminal blocks,feed through terminal blocks |
||

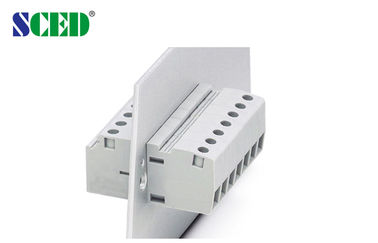

600V 65Amp Connector Feed Through Terminal Blocks Grey 10.10mm Auto Electrical Terminal
Detailed product Description:

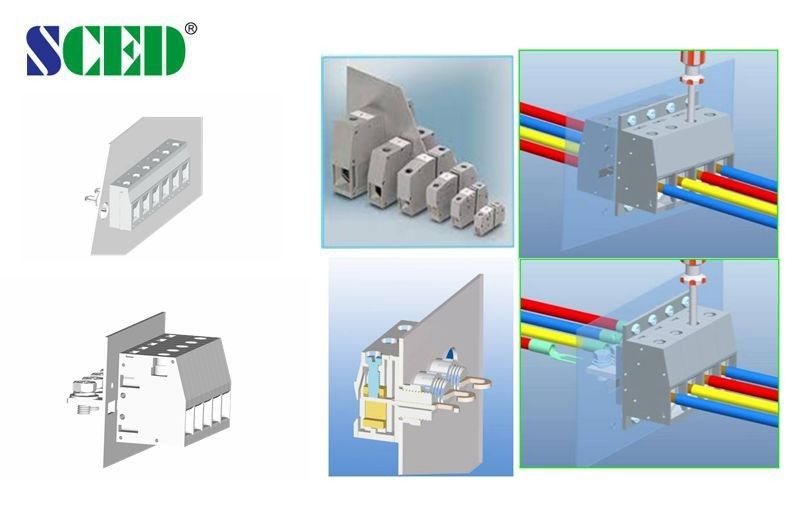

Pitch 10.1mm, 600V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 65 |
|
600 / 5 |
|
Wire Range AWG |
6-24 |
|
6-24 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 76 |
800 / 76 |
1000 / 76 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
10 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Conduction Board / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
11 |
||
|
Screw / Torque / lbf.in |
M4 / 10.6-13 |
||
Competitive Advantage:
