تفاصيل المنتج:
شروط الدفع والشحن:
|
| ملعب كورة قدم: | 9.525mm | جهد فلطيّ مصنّف: | 300V |
|---|---|---|---|
| تيار مصنّف: | 20A | أعمدة المتاحة: | 2-16 ف |
| مجموعة الأسلاك: | 12-22 AWG | مواد: | PBT |
| تسليط الضوء: | electrical terminal block,barrier type terminal block,barrier type terminal block |
||

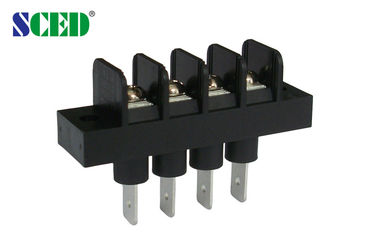

PCB Fixing Screw Connector 9.525mm PBT Black Barrier Terminal Block 300V
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 20 | 300 / 10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 32 | 800 / 32 | 1000 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.2x6.8 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 3.5 / 7-10 | ||

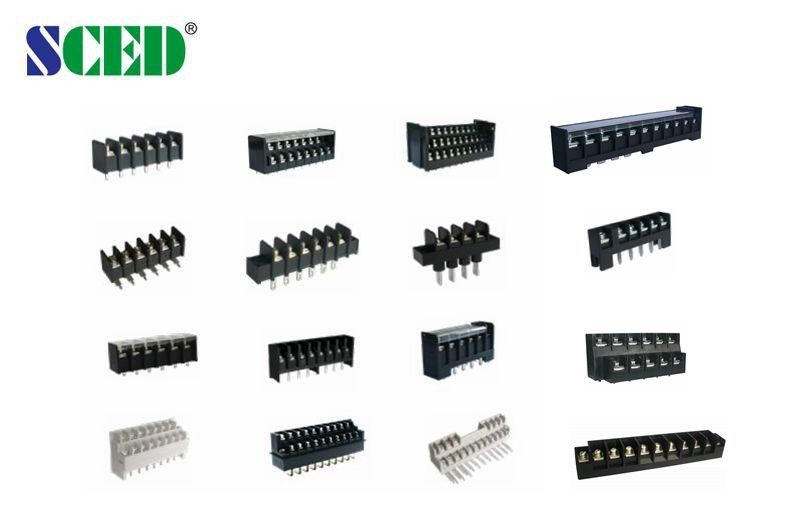

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

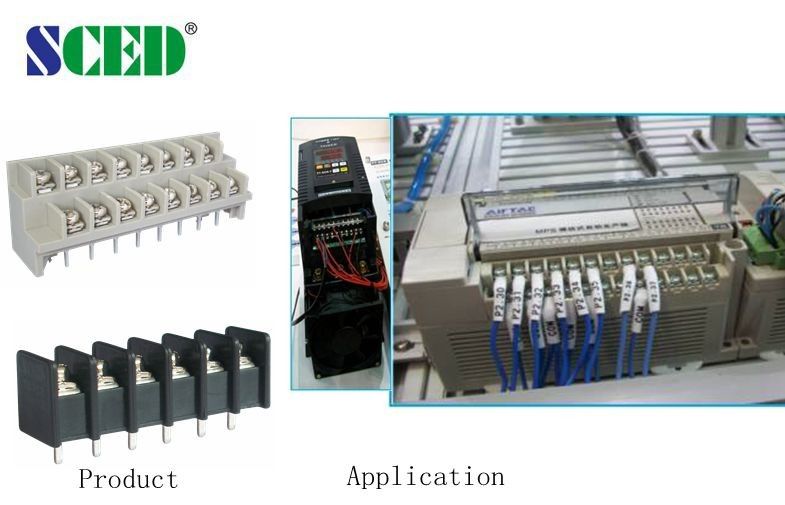

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
