| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE,CUL etc. |
| رقم الموديل: | TB1300-05-C |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.076-0.142 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 11.1 ملم | أعمدة: | 2-12 عمود |
|---|---|---|---|
| الجهد االكهربى: | 600 فولت | تيار: | 40 أ |
| مجموعة الأسلاك: | 20-8 أوغ | برغي: | م 4 |
| عزم الدوران: | 10.6-13 ملم | مادة العزل: | PBT |
| فئة القابلية للاشتعال: | UL94-V0 | صالة: | نحاس |
| تسليط الضوء: | electrical terminal block,barrier type terminal block,barrier type terminal block |
||

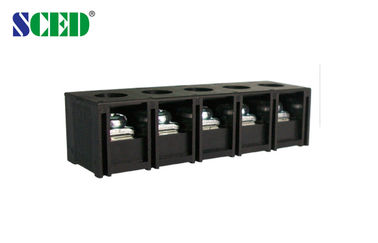

Black 40A Barrier Terminal Block for Power with Cover 2-18 Poles M4 Screw Brass PBT
Detailed product Description:
Pitch 11.10mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet; Vertical wire inlet; 45 degree wire inlet
■Single Level; Double levels;Triple levels
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

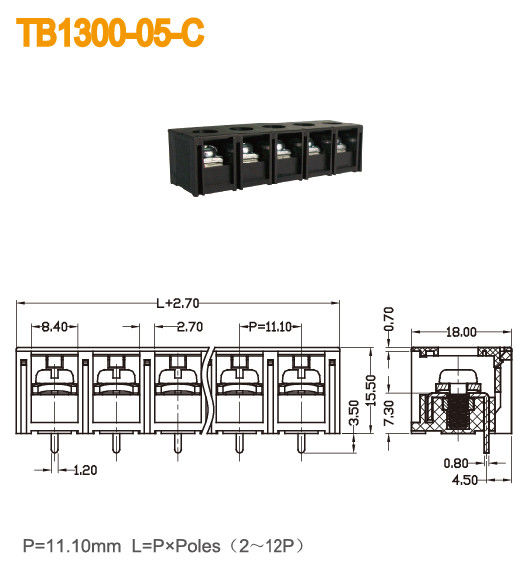

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
| Wire Range AWG | 20-8 | 20-8 | 20-8 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 40 | 1000 / 40 | 1000 / 40 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.8 | ||
| Stripping Length mm | 10-12 | ||
| Screw / Torque / lbf.in | M 4 / 10.6-13 | ||
Competitive Advantage:
